M4D-BLK

M4D-BLK-LCLC-01

Tactical Premade Cables -- Duplex Multimode

Every manufacturer builds the same fiber optic patch cable -- yellow for single mode and aqua for multimode. Handle with care... plug it in... hope it survives more than a couple plug cycles....

This works great for data centers and IT installations, but let's face it... audio visual installations have a different aesthetic and performance requirement.

Introducing the Black Series™ from TechLogix. These aren't your cheap-o network cables -- all Black Series™ cables are factory certified for performance and durability. And, yes, they feature black tactical jackets to ensure they blend into your beautifully wired rack.

Black Series™ cables use top-graded OM4 multimode fiber to provide 10,000x more bandwidth than Cat 5e and Cat 6 network cables. Plus, they're certified to be completely immune to electromagnetic and RF interference, as well as lightning, static electricity and power surges.

Plus, a military-grade tactical jacket provides flexibility and durability even when repeatedly and heavily handled.

TechLogix Black Series™ cables combine the performance of fiber with the durability of a silk covered battleship. They'll differentiate your next installation and ensure it performs for years' to come.

Select a stock length or build your own custom configuration



  • Technical Features
  • Resources
  • Accessories
  • Installation
  • FAQ
  • SKUs
    • Duplex Fiber Count

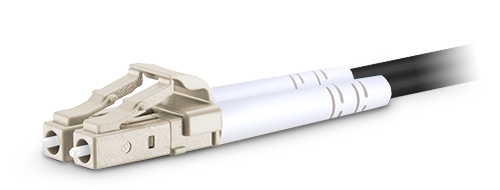

    • Available in two configurations - LC/LC and SC/SC
    • UPC to UPC Polish Type
    • 50/125um OM4 fiber
    • Tactical black jacket
    • Completely immune to RF and EM interference
    • Completely immune to static electricity, surges and lightning

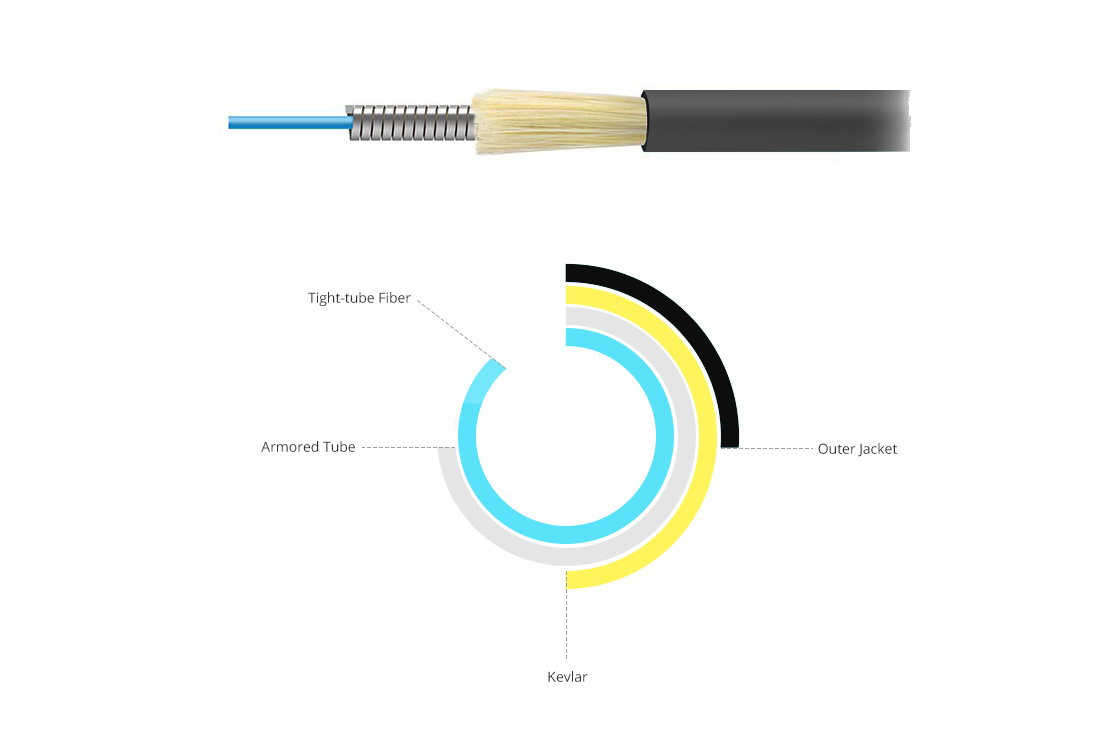

    • Internal helical stainless steel tape over a buffered fiber surrounded by a layer of aramid yarn and stainless steel mesh
    • 10mm minimum bend rating
    • 700lb crush rating
    • ≥100lb tensile strength
    • -40 - 85 degree C (-40 - 185 degree F) operating temperature
    • UV and water resistant
  • Specification Sheet
    Design and Installation Guide
    Manual
    Product Video
    Design Help
    Installation Help

    1. Plug the cable into the devices you want to connect.
    2. Bask in the glory of your brilliance.
  • Could these cables beat Chuck Norris in hand-to-hand combat?
    Possibly, but it's far more likely Chuck Norris would take one look at the cable and fall hopelessly in love, thereby creating TechLogix's second generation Black Series™ line which is too extreme for the average human to comprehend.

  • TechLogix Part# TechLogix SKU# Description
    M4D-BLK-LCLC-01 1004-0099
    Tactical fiber patch cord -- 1m duplex multimode OM4 3.0mm fiber with LC to LC connectors
    M4D-BLK-LCLC-02
    1004-0100
    Tactical fiber patch cord -- 2m duplex multimode OM4 3.0mm fiber with LC to LC connectors
    M4D-BLK-LCLC-03
    1004-0101
    Tactical fiber patch cord -- 3m duplex multimode OM4 3.0mm fiber with LC to LC connectors
    M4D-BLK-LCLC-05
    1004-0102
    Tactical fiber patch cord -- 5m duplex multimode OM4 3.0mm fiber with LC to LC connectors
    M4D-BLK-LCLC-07
    1004-0103
    Tactical fiber patch cord -- 7m duplex multimode OM4 3.0mm fiber with LC to LC connectors
    M4D-BLK-LCLC-10
    1004-0104
    Tactical fiber patch cord -- 10m duplex multimode OM4 3.0mm fiber with LC to LC connectors
    M4D-BLK-LCLC-15
    1004-0105
    Tactical fiber patch cord -- 15m duplex multimode OM4 3.0mm fiber with LC to LC connectors
    M4D-BLK-LCLC-20
    1004-0106
    Tactical fiber patch cord -- 20m duplex multimode OM4 3.0mm fiber with LC to LC connectors
    M4D-BLK-LCLC-30
    1004-0107
    Tactical fiber patch cord -- 30m duplex multimode OM4 3.0mm fiber with LC to LC connectors
    M4D-BLK-LCLC-40
    1004-0119
    Tactical fiber patch cord -- 40m duplex multimode OM4 3.0mm fiber with LC to LC connectors
    M4D-BLK-LCLC-50
    1004-0108
    Tactical fiber patch cord -- 50m duplex multimode OM4 3.0mm fiber with LC to LC connectors
    M4D-BLK-SCSC-01
    1004-0109
    Tactical fiber patch cord -- 1m duplex multimode OM4 3.0mm fiber with SC to SC connectors
    M4D-BLK-SCSC-02
    1004-0110
    Tactical fiber patch cord -- 2m duplex multimode OM4 3.0mm fiber with SC to SC connectors
    M4D-BLK-SCSC-03
    1004-0111
    Tactical fiber patch cord -- 3m duplex multimode OM4 3.0mm fiber with SC to SC connectors
    M4D-BLK-SCSC-05
    1004-0112
    Tactical fiber patch cord -- 5m duplex multimode OM4 3.0mm fiber with SC to SC connectors
    M4D-BLK-SCSC-07
    1004-0113
    Tactical fiber patch cord -- 7m duplex multimode OM4 3.0mm fiber with SC to SC connectors
    M4D-BLK-SCSC-10
    1004-0114
    Tactical fiber patch cord -- 10m duplex multimode OM4 3.0mm fiber with SC to SC connectors
    M4D-BLK-SCSC-15
    1004-0115
    Tactical fiber patch cord -- 15m duplex multimode OM4 3.0mm fiber with SC to SC connectors
    M4D-BLK-SCSC-20
    1004-0116
    Tactical fiber patch cord -- 20m duplex multimode OM4 3.0mm fiber with SC to SC connectors
    M4D-BLK-SCSC-30
    1004-0117
    Tactical fiber patch cord -- 30m duplex multimode OM4 3.0mm fiber with SC to SC connectors
    M4D-BLK-SCSC-40
    1004-1120
    Tactical fiber patch cord -- 40m duplex multimode OM4 3.0mm fiber with SC to SC connectors
    M4D-BLK-SCSC-50
    1004-0118
    Tactical fiber patch cord -- 50m duplex multimode OM4 3.0mm fiber with SC to SC connectors
