TechLogix manufactures a variety of solutions designed for service provider installation. Below is a list of commonly deployed products.

Step-by-step termination videos and frequently asked questions are available in our Fiber Optic Resource Guide





Snap-On Fiber Connectors. TechLogix ECO Series™ field-installable connectors provide the quick, easy and reliable termination of fiber optic cable – no epoxy, crimping, polishing or proprietary tools.

  • Built-in button for one-click termination
  • Built-in verification window showing proper termination
  • Re-terminate up to 5 times
  • Ultra-low loss
  • Self-centering alignment groove





Micro-Armored Fiber Patch Cords & Drop Cables. TechLogix ECO Series™ micro-armored fiber optic cables survive rough handling and extreme environments thanks to ultra-thin and pliable stainless-steel armor.

  • Internal helical stainless-steel micro armor
  • UV & water-rated jacket
  • 3mm overall cable diameter
  • 10mm bend-rating
  • 700lb crush-rating
  • -40 to 85 degree C operating temperature





Quick-Strip Outdoor Fiber Cable. TechLogix OSPFiber™ tackles drop, direct burial and aerial applications with a single universal construction. Plus, its quick-strip design terminates in less time than traditional cables.

  • 2, 6 & 12 strand constructions
  • UV & water-rated jacket
  • Zip-cord design with 250um subunits
  • Bend-insensitive single mode fiber
  • Integrated steel messenger wire for aerial suspension or underground toning





Fiber Keystones & Couplers. TechLogix fiber optic keystones and couplers connect a variety of fiber optic connection types and cables.

  • 13mm panel-mount & keystone formats
  • High precision ceramic sleeve
  • Ultra-low loss
  • Available in a variety of colors & formats
  • APC & UPC polish
  • Available in single mode & multimode





Mechanical Fiber Splices. TechLogix UNIV-SPLICE universal splice kits mechanically connect two single mode or multimode fiber optic cables together using a quick and simple one-click process.

  • Built-in button for one-click termination
  • Built-in verification window showing proper termination
  • Compatible with 900um & 250um optical strands
  • No epoxy or polishing required





Universal Fiber Termination Kits. TechLogix ECO Series™ fiber termination kits include the tools required to terminate fiber optic cable and test connector and strand continuity. Tools are compatible with most major brands of cable and mechanical connectors.

Contents

  • Tool bag
  • Precision fiber optic cleaver
  • Aramid strand scissors
  • Tri-hole fiber stripper
  • Metric ruler
  • Visual fault locator
  • Barrel-style visual fault locator adapter
  • Pump-style alcohol dispensing bottle
  • Lint-free cleaning wipes
  • Permanent marker





Linkable Fiber Switches. TechLogix NS42-POE network switches deliver gigabit ethernet via twisted pair and fiber, creating a flexible solution for linking multi-dwelling units and multi-drop installations.

  • 4 dedicated RJ45 ports, 1 dedicated fiber SFP port & 1 RJ45/fiber SFP combo port
  • 30W PoE per channel
  • Redundant power inputs & reverse power protection
  • 12KV surge protection per channel
  •  -40 to 75 degree C operating temperature





About TechLogix Networx

A division of NSI Industries, TechLogix develops and manufactures high-bandwidth, leading-edge fiber optic solutions. They specialize in products supporting last-mile fiber deployment, while simplifying installations with innovative connectors, cables and electronics.

Continue reading

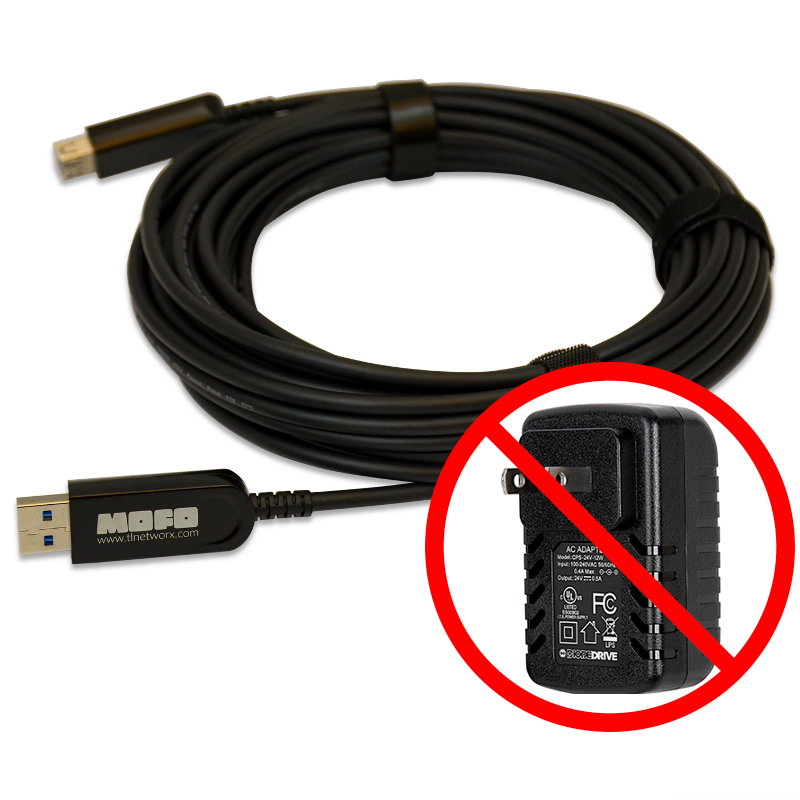

Understanding MOFO™ Power
