MOFO-USBAC

MOFO™ Media Over Fiber Optic cable -- USB 3.2/2.0/1.1 Type A F to Type C -- plenum rated

TechLogix MOFO™ USB cables leverage a true fiber core to deliver unparalleled speed, bandwidth and reliability. Pre-terminated connectors accommodate installations in seconds and the optical construction provides complete immunity to RF, EM and electrical interference. USBAC cables adapt USB type A connections to USB type C connections and extend SuperSpeed (10G) and Hi-Speed USB data up to 50m.

Technical Features

• Plenum-rated jacket
• Fiber-based USB cable
• Male Type A USB connector to male Type C USB connector
• Compatible with USB 3.2 Gen 2 (SuperSpeed 10G) devices and USB 2.0 (high-speed) devices
• Meets USB 3.2 Gen 2 specification
• High power devices may need external power on the remote side

• Plug-and-play – no drivers required
• True fiber cable core using TechLogix's MOFO™ technology

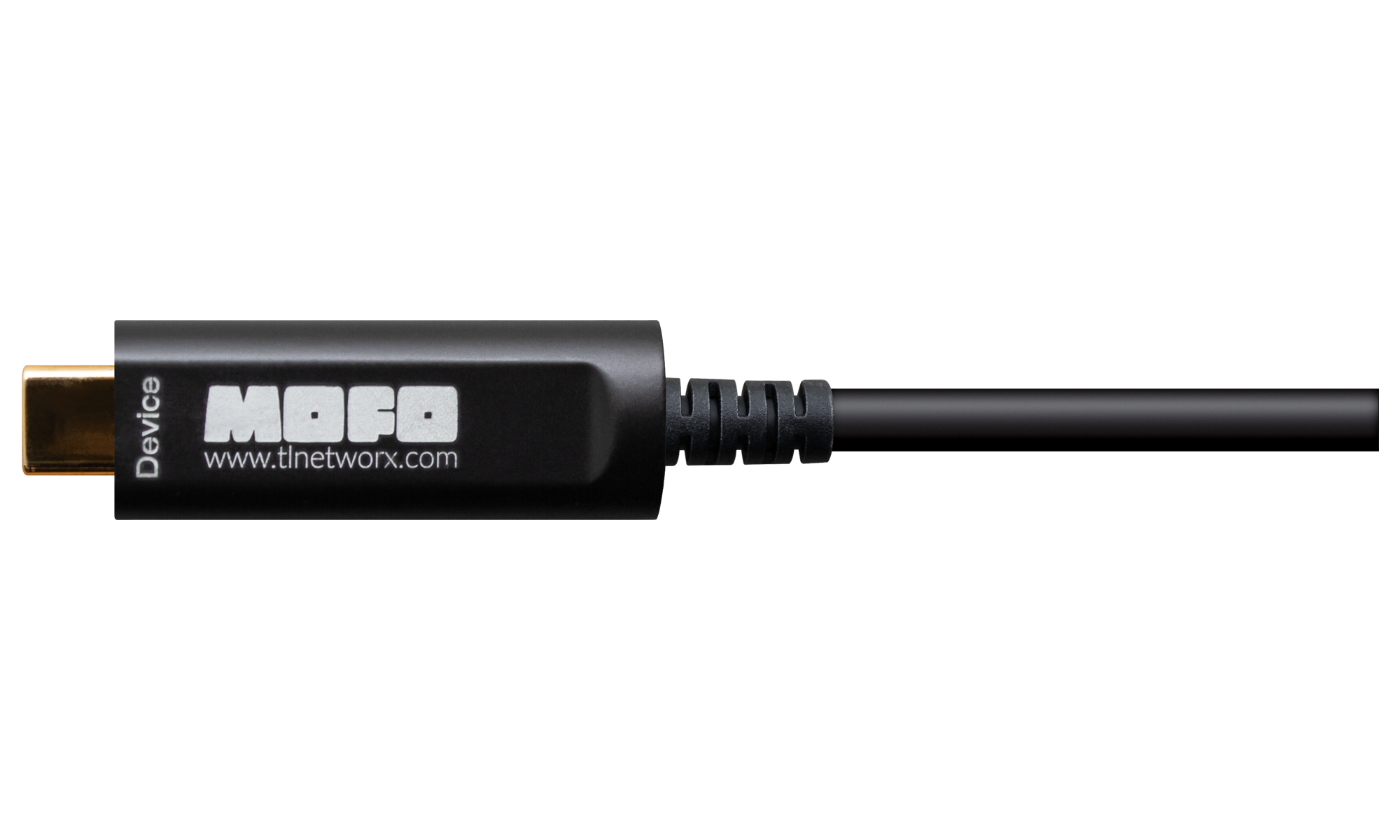

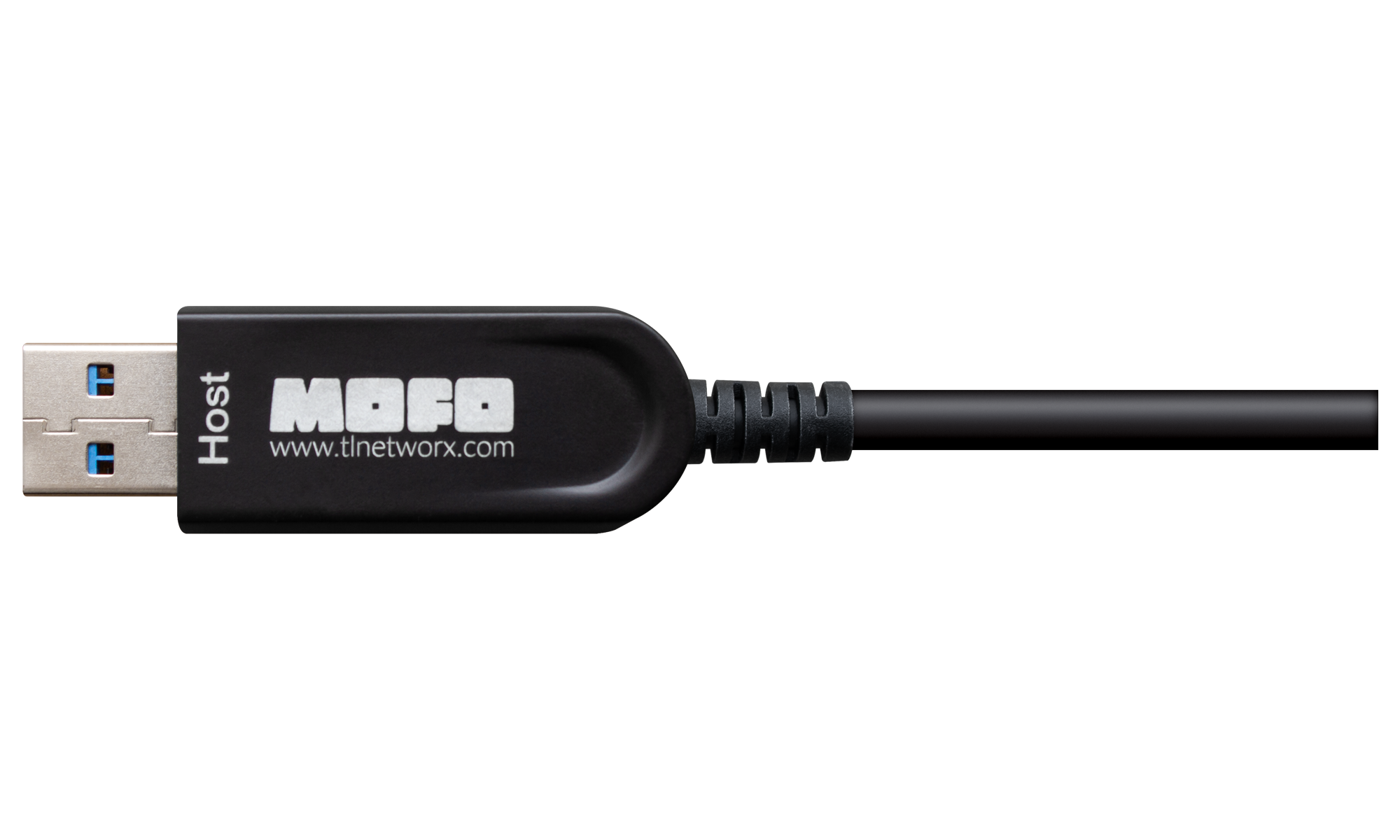

• Directional operation – clearly marked Host & Device headshells
• Interference-free performance
• Recommended for conduit/pipe/duct diameters of 3/4" or greater if pulling the USB C side
• Recommended for conduit/pipe/duct diameters of 1" or greater if pulling the USB A side


Resources

Technical Specifications

TechLogix MOFO™ Solution Guide
