MOFO-USBC

MOFO-USBC-03

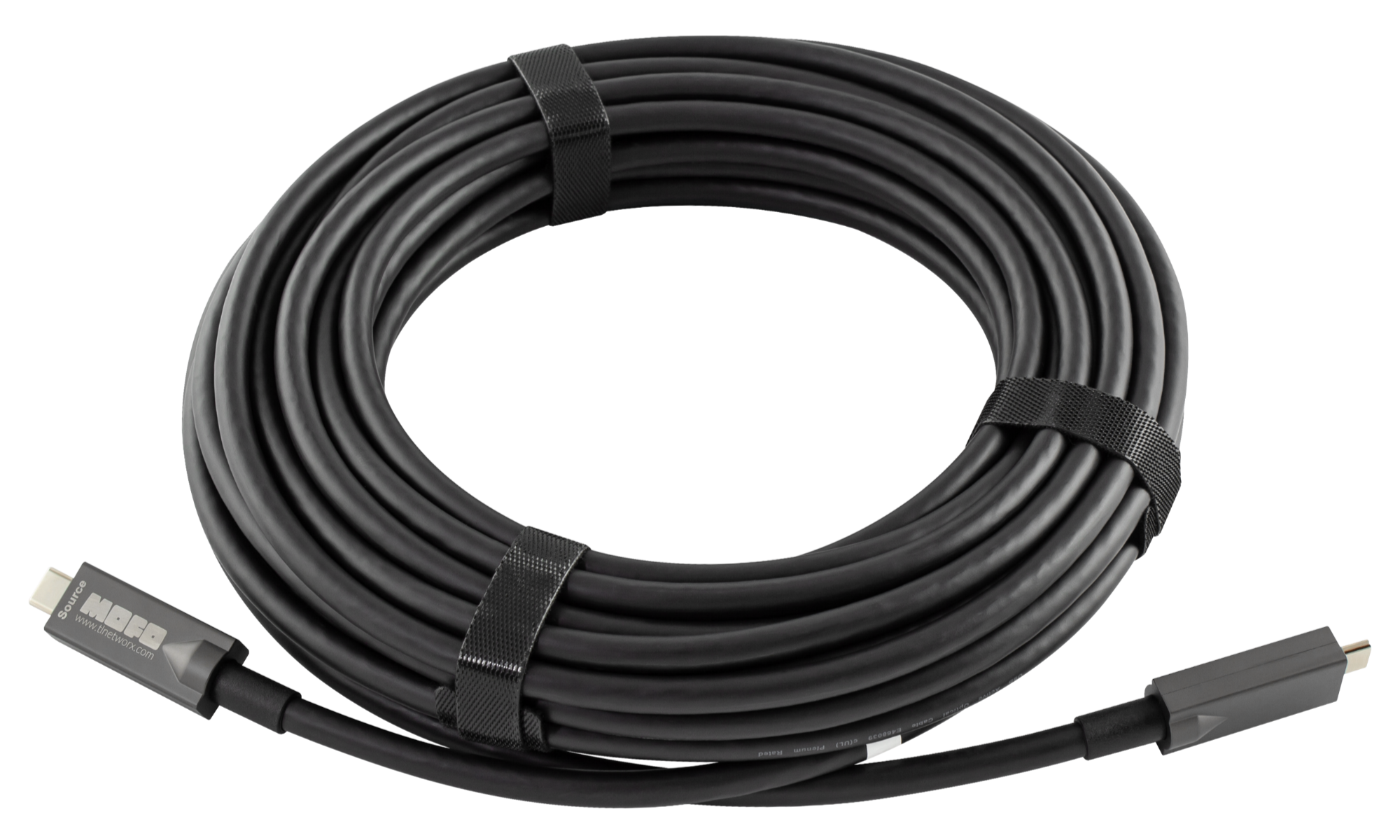

MOFO™ Media Over Fiber Optic cable -- USB 3.1/2.0/1.1 Type C to Type C -- plenum rated

TechLogix MOFO™ USB cables leverage a true fiber core to deliver unparalleled speed, bandwidth and reliability. Pre-terminated connectors accommodate installations in seconds and the optical construction provides complete immunity to RF, EM and electrical interference. USBC cables extend SuperSpeed and Hi-Speed USB data, power (60W/20V/3A), and 2-lane DisplayPort 1.4 video up to 10m without the need for external power supplies, boosters, or extenders.



Technical Features

  • Plenum-rated jacket
  • Fiber-based USB cable
  • Male Type C USB connector to male Type C USB connector
  • Compatible with USB 3.2 Gen 2 (SuperSpeed 10G) devices and USB 2.0 (high-speed) devices
  • Extends power for devices up to 60 watts (20V/3A)
  • Supports 2-lane DisplayPort 1.2 video (16.2 G)
  • Directional configuration for video; non-directional for data and power
  • No power required (completely powered by USB bus)
  • Plug-and-play – no drivers required
  • True fiber cable core using TechLogix's MOFO™ technology
  • Metal molded connector headshells
  • Interference-free performance
  • Recommended for conduit/pipe/duct diameters of 3/4" or greater

Resources

Technical Specifications

TechLogix MOFO™ Solution Guide




SKUs

Part Number Description
MOFO-USBC-03 USB-C -- USB 3.1 with backwards support -- 60w/20V/3A power support -- 3m length -- plenum rated
MOFO-USBC-05 USB-C -- USB 3.1 with backwards support -- 60w/20V/3A power support -- 5m length -- plenum rated
MOFO-USBC-08 USB-C -- USB 3.1 with backwards support -- 60w/20V/3A power support -- 8m length -- plenum rated
MOFO-USBC-10 USB-C -- USB 3.1 with backwards support -- 60w/20V/3A power support -- 10m length -- plenum rated
