10G Ethernet Media Converter with 1 SFP+ Slot & 1 RJ45 Port
TechLogix media converters adapt fiber signals to a variety of different formats and/or cable types.
The TL-MC10G-1S1R features one SFP+ port (SFP module sold separately) and one RJ45 twisted pair port, effectively adapting twisted pair-based devices to fiber for longer transmission distances. The TL-MC10G-1S1R supports multimode fiber when paired with a multimode SFP+ module and single mode fiber when paired with a single mode SFP+ module.
Two TL-MC10G-1S1R media converters are required for most applications -- one for each end of the cable run. The compact size of the converter allows it to be easily deployed in any narrow desktop location or to be used in a wall-mount installation.
Technical Features
- One 10G SFP+ port
- Supports IEEE802.3u, 10GBase-T and 10GBase-FL
- Supports full-duplex mode or half-duplex mode operation with autonegotiation

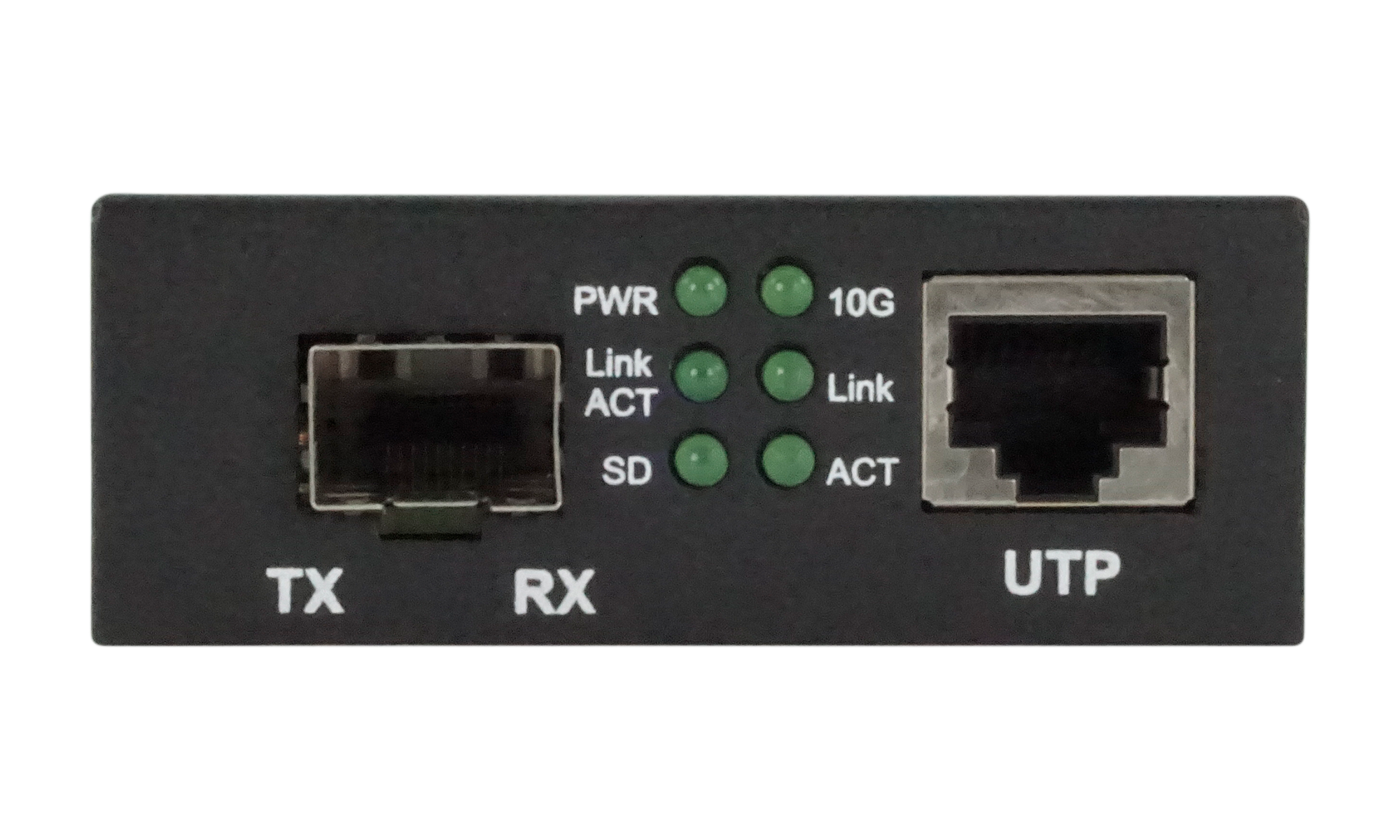

- Status LEDs for power and Link/TX for both ports
- Supports jumbo frames up to 9 kBytes
- External 12 VDC power adapter
- Fully NDAA-compliant
