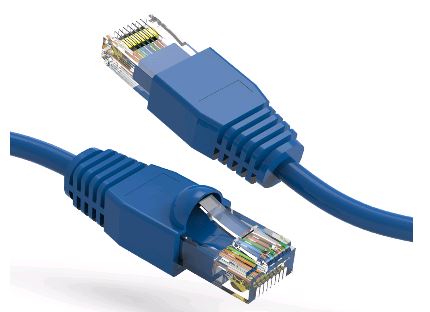

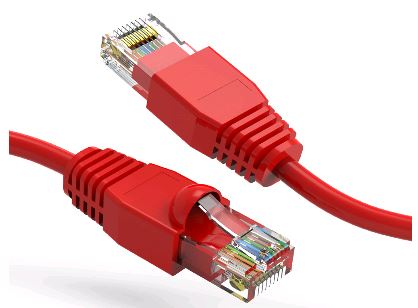

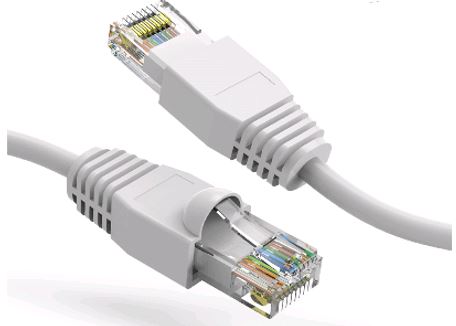

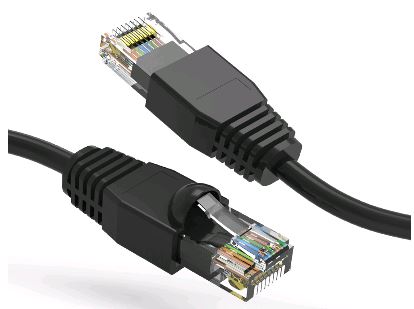

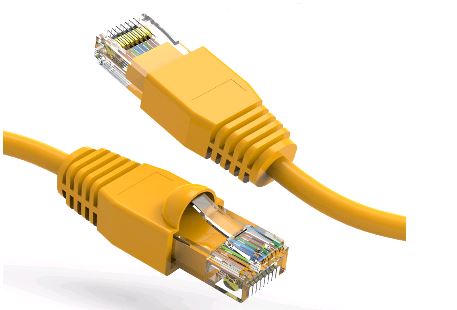

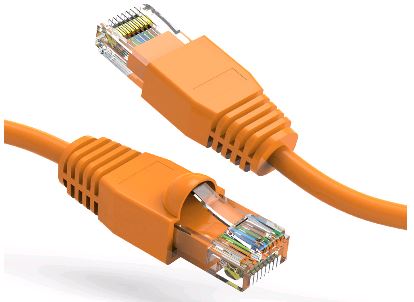

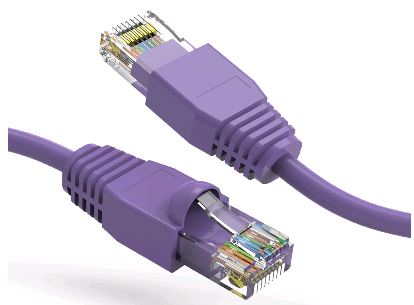

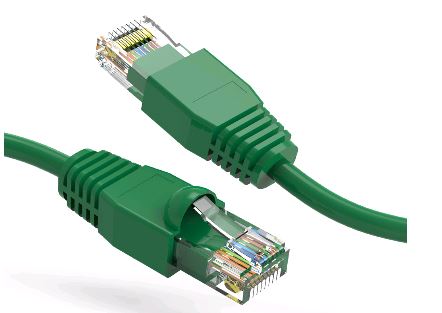

CAT6A CHOICE Stranded Ethernet Patch Cable with Molded Boot (26AWG)
Vibrant colors to easily color-code your network installation. Designed for 10/100/1000BASE-T and 10 Gbps networks.
All network patch cables are pure copper wire with gold plated contacts.
Every cable is UL listed, CM rated and Fluke tested ensuring the highest level of performance.
Construction
Cable Type: Cat6A Molded Boot
Conductor Type: 26 AWG, Stranded Tinned Copper
Cable Jacket: PVC CM
Shielding Type: Unshielded (UTP)
Connectors: RJ45 Male 50mμ gold-plated
Insulation: high density polyethylene, .005″ nominal wall thickness
Performance
Operating Temperature: -4° to 140°
Data Rate Support: up to 10 Gbps
Frequency Bandwidth: 500 MHz
POE Specifications
POE: 350mA, 12.95W, Max distance 40mPOE+: 600mA, 25.5W, Max distance 40mPOE++: 1,000mA, 96W, Max distance 40m
Approvals
UL Listed
RoHS Compliant
ANSI/TIA 568 C.2 Category 6
ISO 11801 Class E Edition 2.1
Manufacturing Facility: ISO-9001 and TUV Certified
