ECOConnectors™ - ST

SM9-ST

ECO Series™ Field-Assembly ST Type Fiber Optic Connectors

TechLogix ECO Series™ field-installable fiber optic connectors are designed for quick, easy and reliable termination of 250μm, 900μm and 2.0mm fiber cables, including both distribution and zip-cord configurations.

ECO Series™ connectors are compatible with both single mode (OS1 & OS2) and multimode (OM2, OM3 & OM4) fiber and are available in standard (UPC) and angled (APC) pre-polished formats. No epoxying, crimping, polishing or proprietary tools are required for termination.

Unlike other connectors which are marketed as “one-size fits all”, ECO Series™ connectors are specific to 250μm, 900μm and 2.0mm cables to ensure perfect alignment, reducing refraction and signal loss. And regardless of cable, a large built-in verification window, self-centering alignment groove and easy-to-press button for one-click termination ensures installation times around two minutes.
  • Technical Features
  • Resources
  • Accessories
  • Installation
  • FAQ
  • SKUs
    • ST type connectors
    • Pre-polished for UPC (standard) & APC (angled) connections
    • Compatible with single mode (OS1 & OS2) & multimode (OM2, OM3 & OM4) cable
    • Compatible with 250μm, 900μm & 2.0mm cable, including distribution and zip-cord formats
    • No proprietary tools required
    • No epoxy, crimping or polishing required
    • Built-in verification window showing proper termination
    • Self-centering alignment groove for easy & reliable insertion of the fiber optic strand
    • Built-in button for one click termination & locking jig release
    • Average termination time around two minutes
    • Re-usable (five or less termination cycles recommended)
  • Downloads

  • ECO-TERMK-01

    ECO-TERMK-01

    Fiber Optic Termination Kit

    Includes the basic tools required to terminate fiber optic cable using mechanical connectors.

  • No Content Available
  • Part# Compatible Fiber Type
    Recommended Cable Type Polish Color

    SM9-ST

    Single Mode (OS1, OS2)

    250μm, 900μm Distribution Style

    UPC (standard)

    Blue

    SM9-STA

    Single Mode (OS1, OS2) 250μm, 900μm Distribution Style

    APC (angled)

    Green

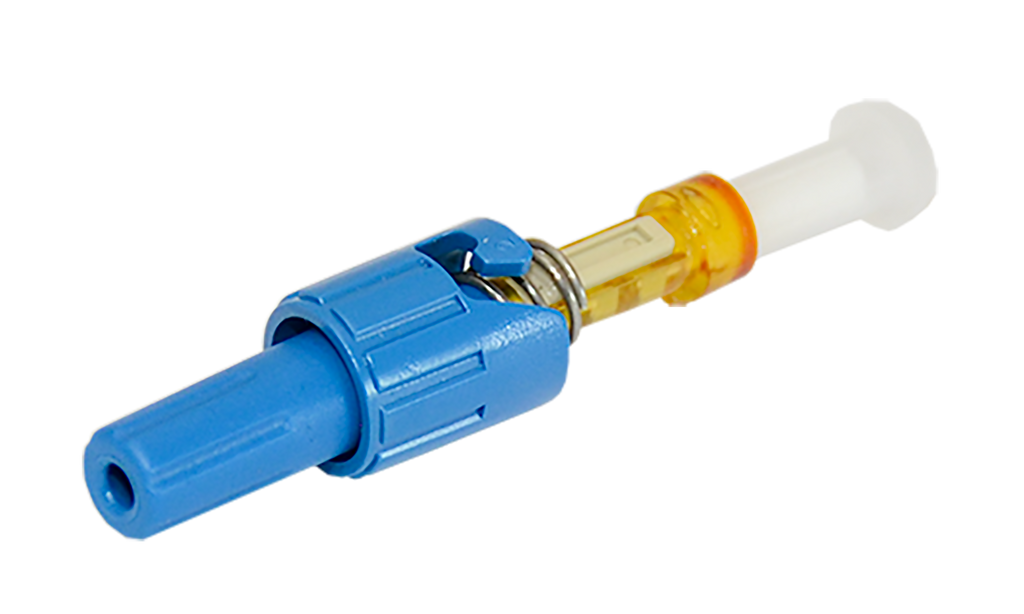

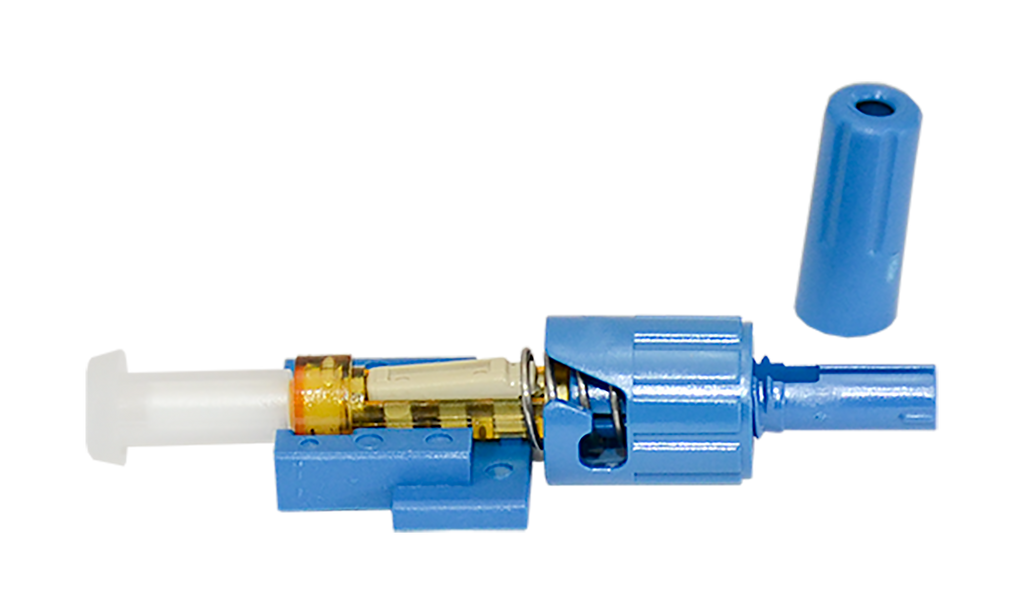

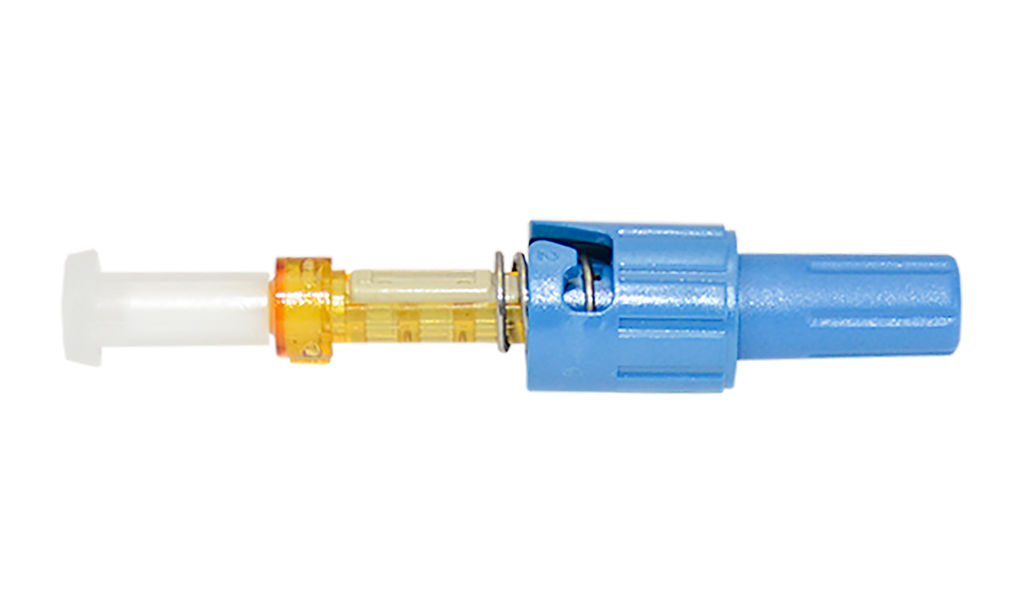

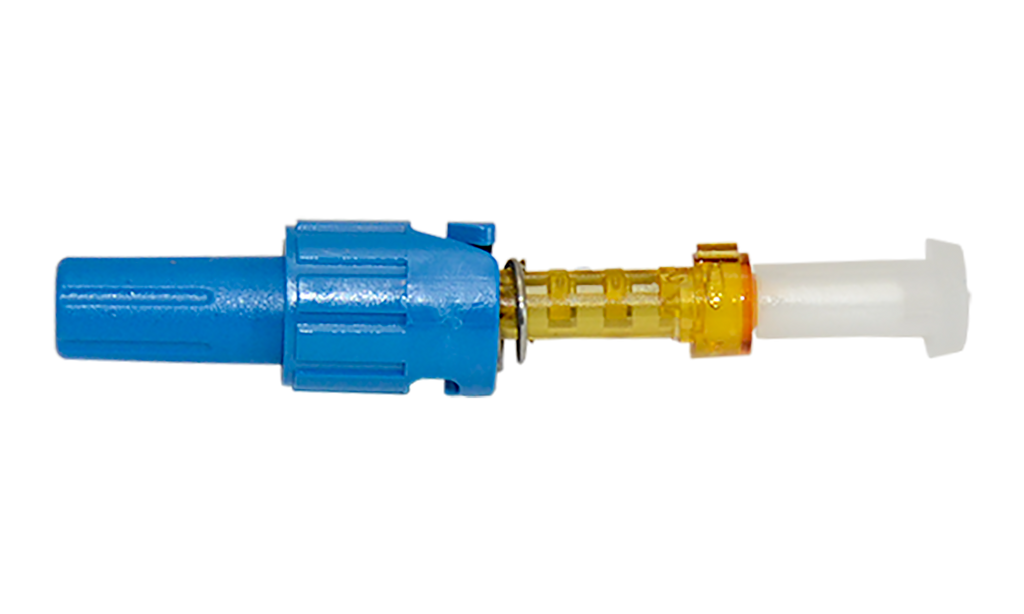

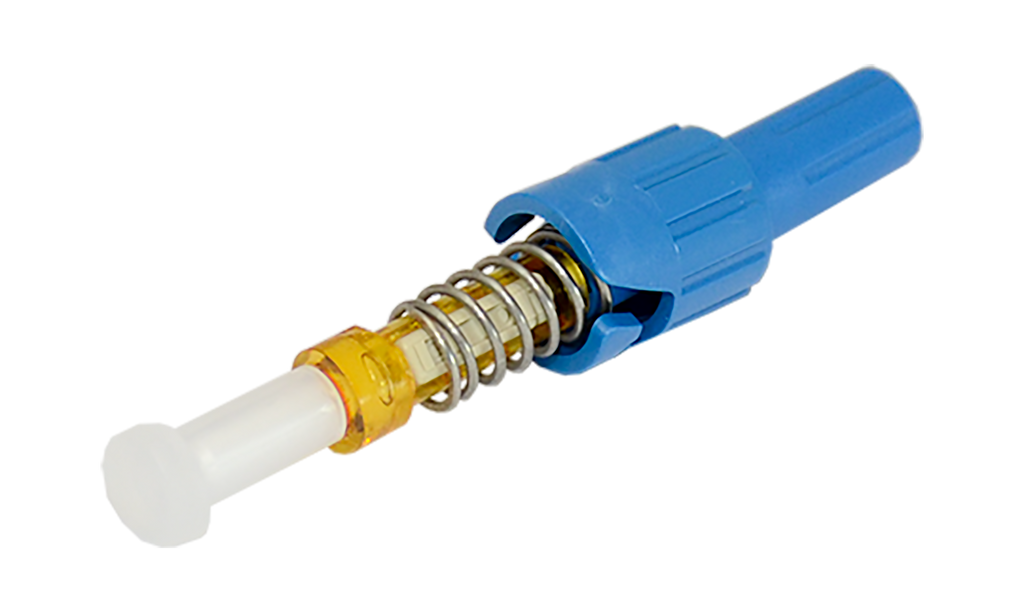

    SM2-ST Single Mode (OS1, OS2)

    2.0mm Zip-Cord Style

    UPC (standard)

    Blue
    SM2-STA Single Mode (OS1, OS2)

    2.0mm Zip-Cord Style

    APC (angled)

    Green

    MM9-ST

    Multimode (OM2, OM3, OM4)

    250μm, 900μm Distribution Style

    UPC (standard)

    Aqua

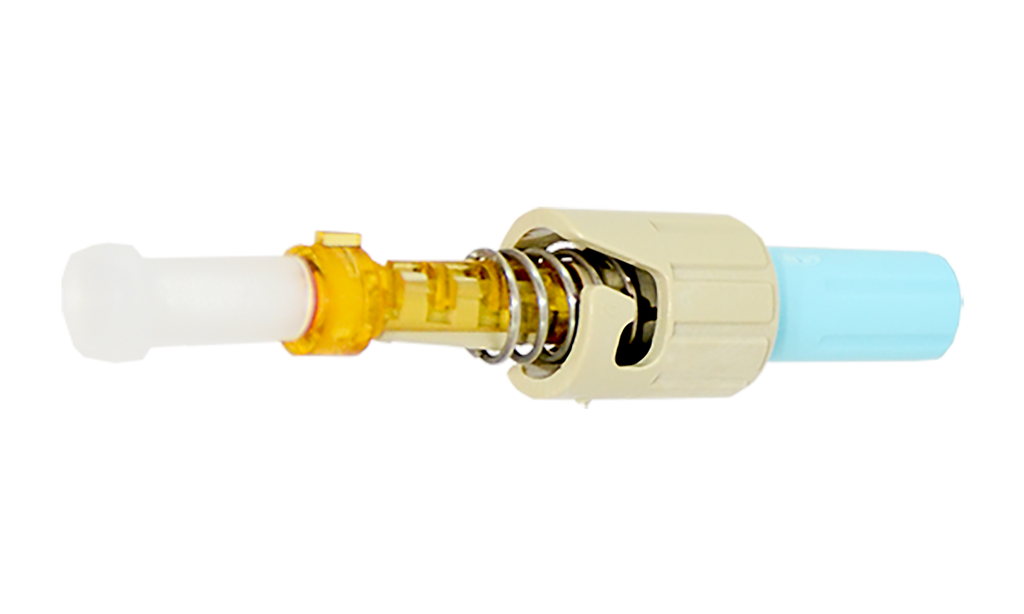

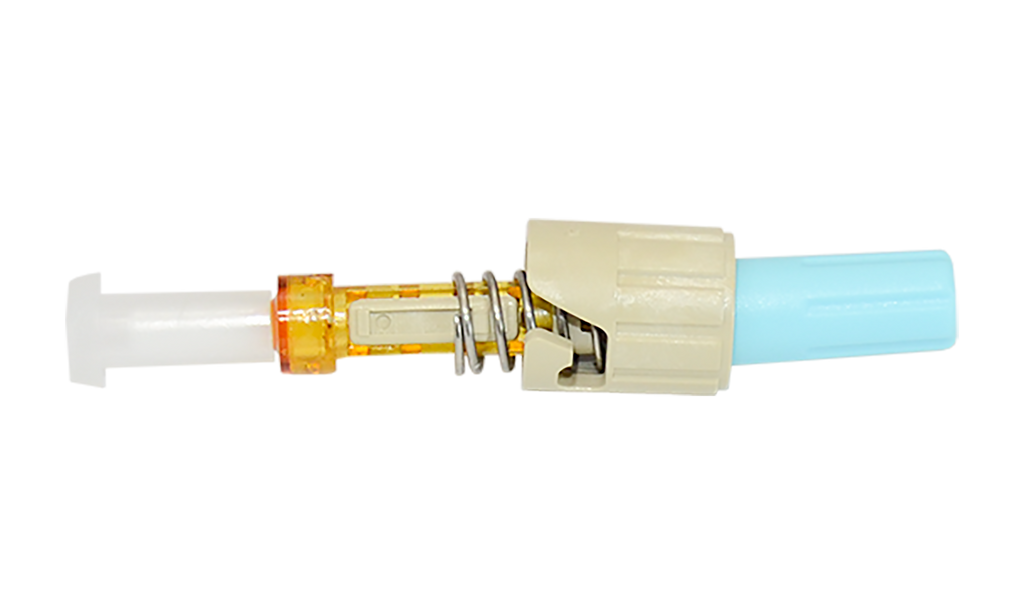

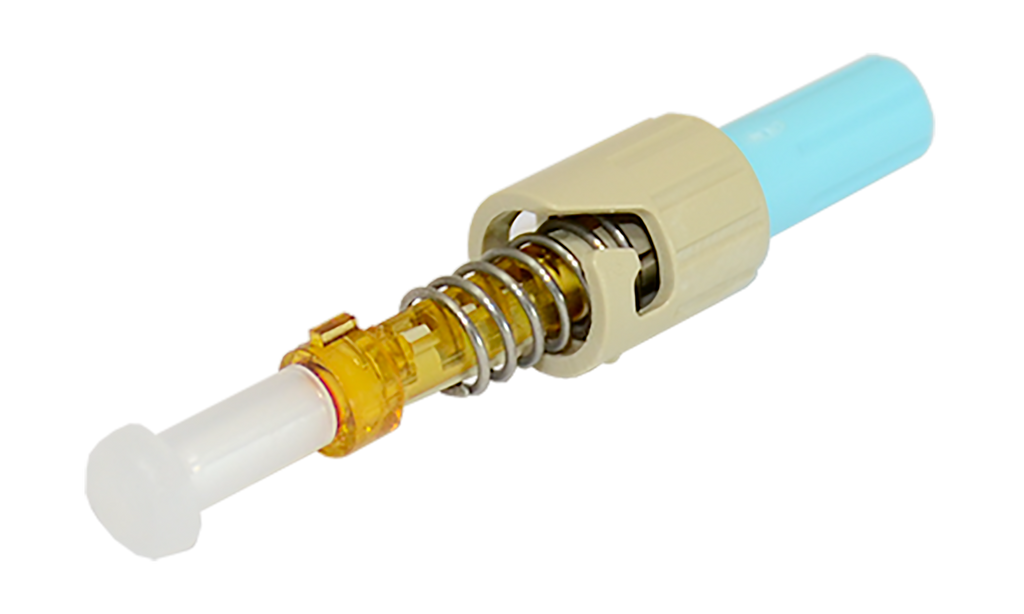

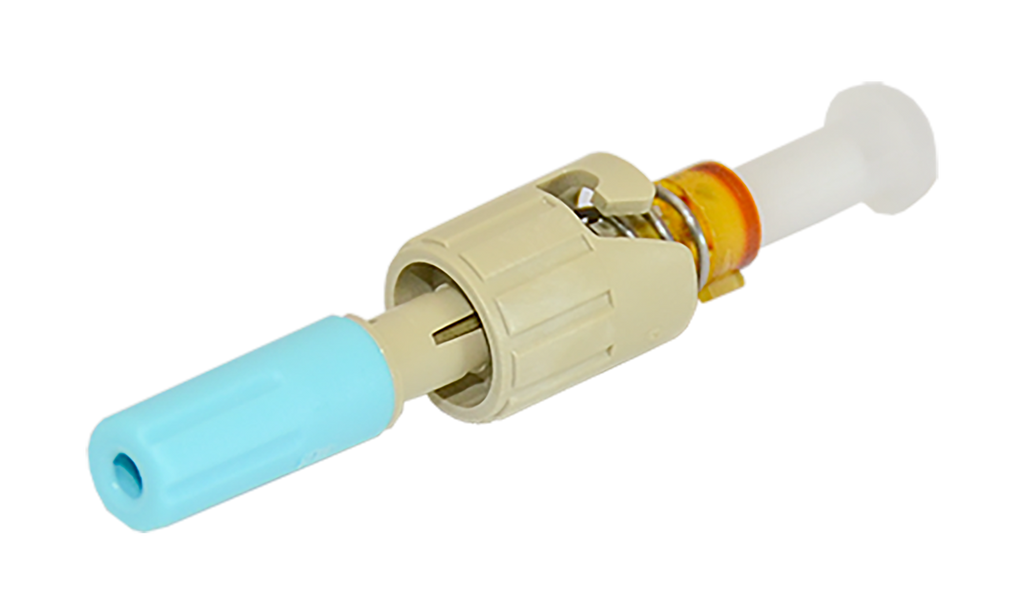

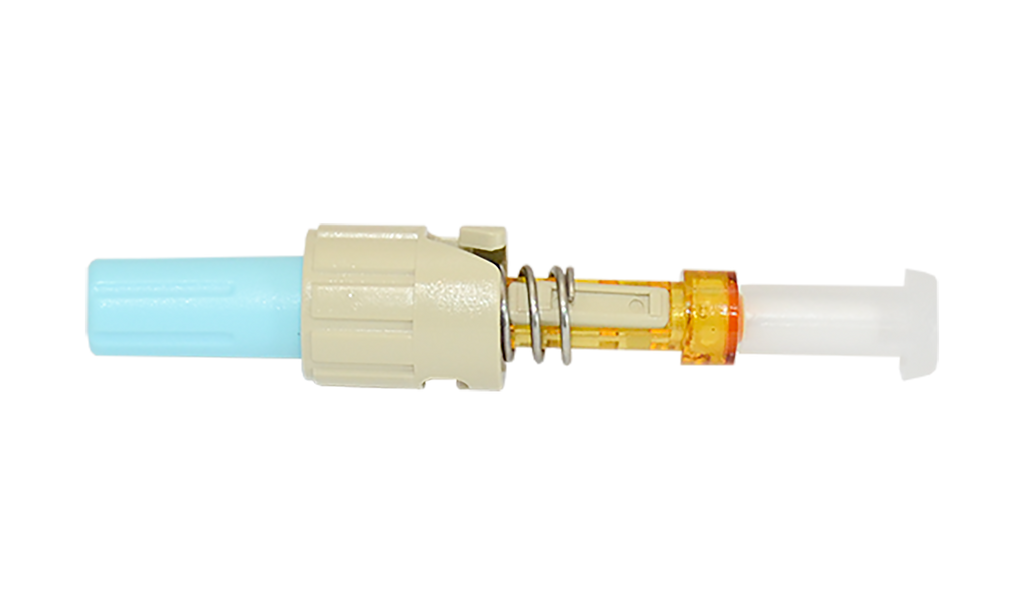

    MM2-ST

    Multimode (OM2, OM3, OM4)

    2.0mm Zip-Cord Style

    UPC (standard)

    Aqua
