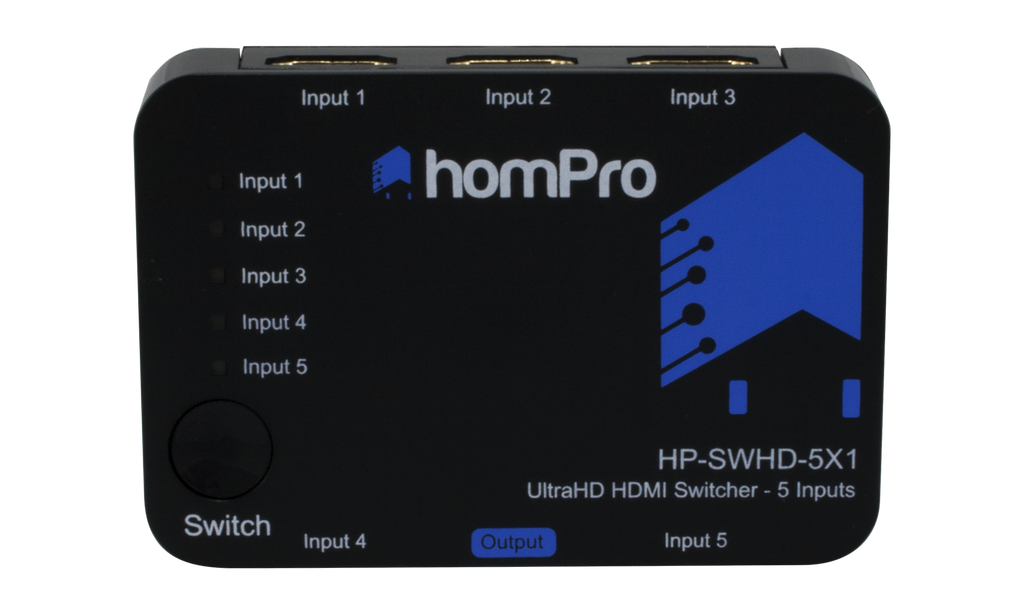

HP-SWHD-5X1
HP-SWHD-5X1
UltraHD HDMI Switcher - 5 Inputs
Limited to inventory on-hand
Searching for an easy-to-use and affordable HDMI switcher? Search no further. The HP-SWHD-5X1 switches five HDMI sources to a single HDMI display. Plus, a built-in autoswitching circuit makes the HP-SWHD-5X1 ideal for small conference rooms and classrooms.
For added versatility, the HP-SWHD-5X1 requires very minimal power, eliminating the need for a power supply in most applications and with most compatible products. It does include a USB power cable in the event that low power source or destination device is used.
- Technical Features
- Resources
- Accessories
- Installation
- FAQ
- SKUs
-
- Extremely compact design (3.4” x 2.3” x 0.7”)
- Extremely light (60 grams)
- 5 HDMI inputs to 1 HDMI output
- Switching via front panel or IR
- Built-in autoswitching between sources
- Supports resolutions up to 10G (4K@30)
- HDCP 1.4 and EDID compliant
- No power supply required
- Includes an IR remote control
- Supports multichannel audio, including Dolby TrueHD & DTS-HD Master Audio 7.1
-
Specification Sheet
Design and Installation Guide
Manual
Product Video
Design Help
Installation Help -
-
- Power off the devices that will be connected to the HP-SWHD-5X1.
- Connect the source devices to the switcher.
- Connect the destination device (typically a display) to the switcher.
- Power on the devices.
- Select the source you wish to view using the switch button on the HP-SWHD-5X1 or by using the included remote control.
-
What comes in the package?
Each HP-SWHD-5X1 includes one switcher, one power cable, one remote control and one IR receiver cable.
How does autoswitching work?
The HP-SWHD-5X1 senses the last live connection or power on and switches to that input.
How I mount the unit?
The HP-SWHD-5X1 is compact enough to be hidden most anywhere. If mounting is required, we recommend using double-sided Velcro™.
-
TechLogix SKU# 0001-0002
