Armored Premade Cables -- Duplex Multimode

Look, everyone knows lasers are cool.  You can blow holes in university statues or destroy homes with popcorn.  If you fancy yourself a 'real genius' you can even use them to transport data!  The best way to contain those beams into something really useful is to shoot them down a TechLogix Networx Fiber Optic patch cable.

The 50/125 micron OM4 multimode fiber optic cable is suitable for higher bandwidth applications, such as in data centers, telecom rooms, server farms, cloud storage networks, and any place fiber jumper cables are needed. It meets RoHS compliant and cable is optically tested for insertion loss to ensure high quality.

These armored fiber optic cables feature a built-in metal stainless steel tube to  provide stronger protection of the optical fibers than standard fiber optic cables. The rugged armored cables allow optical fiber to be installed in the most hazardous areas, including environments with excessive dust, oil, gas, moisture, or even pesky rodents.   Even though they are armored, a flexible 30mm bend radius and light-weight tubing makes them easy to install.

Select a stock length or build your own custom configuration.



  • Technical Features
  • Resources
  • Accessories
  • Installation
  • FAQ
  • SKUs
    • Duplex Fiber Count

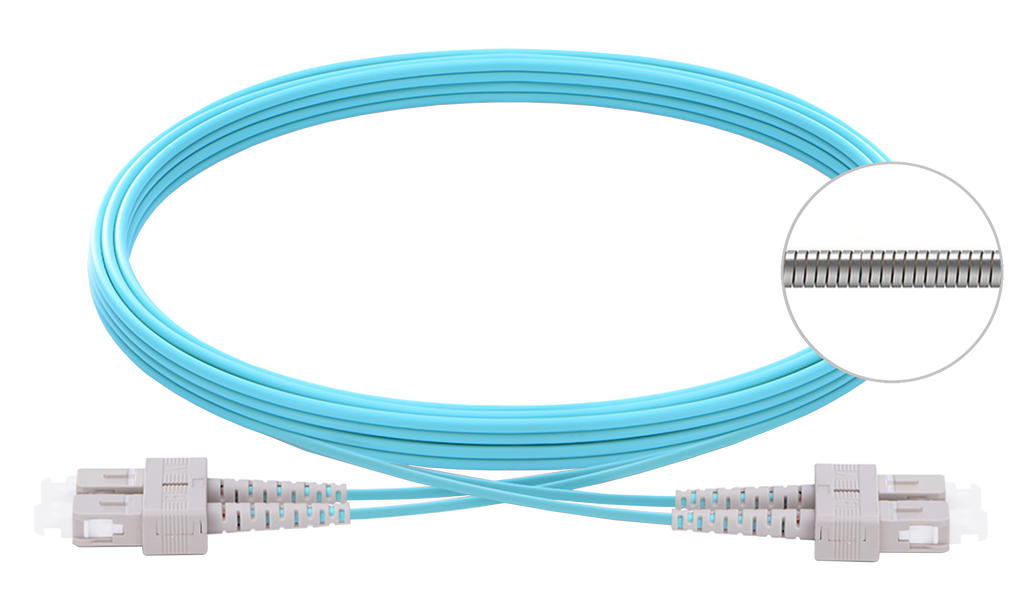

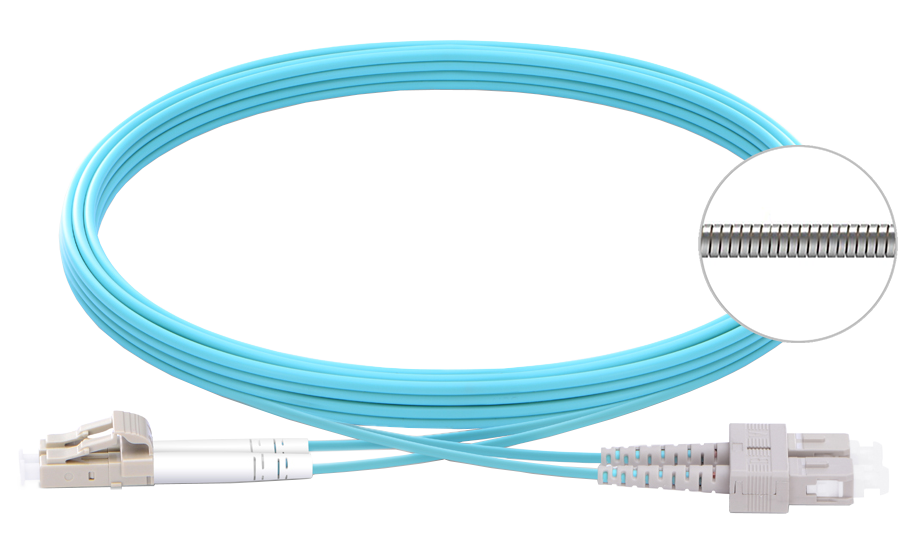

    • Available in 3 configurations - LC/LC, SC/SC, and LC/SC
    • UPC to UPC Polish Type
    • Quality zirconia ceramic ferrule ensures optimum IL and RL, giving you excellent performance.
    • Industry standard flammability rating OFNR (Riser) jacket and duplex fiber connector which meets EIA/TIA 604-2 for high speed cabling networks.
    • 50/125µm fiber core and 3.0mm cable diameter provide maximum protection.
    • Comprehensive performance testing makes sure the cables work more securely and data transmission more reliable and stable in your network.

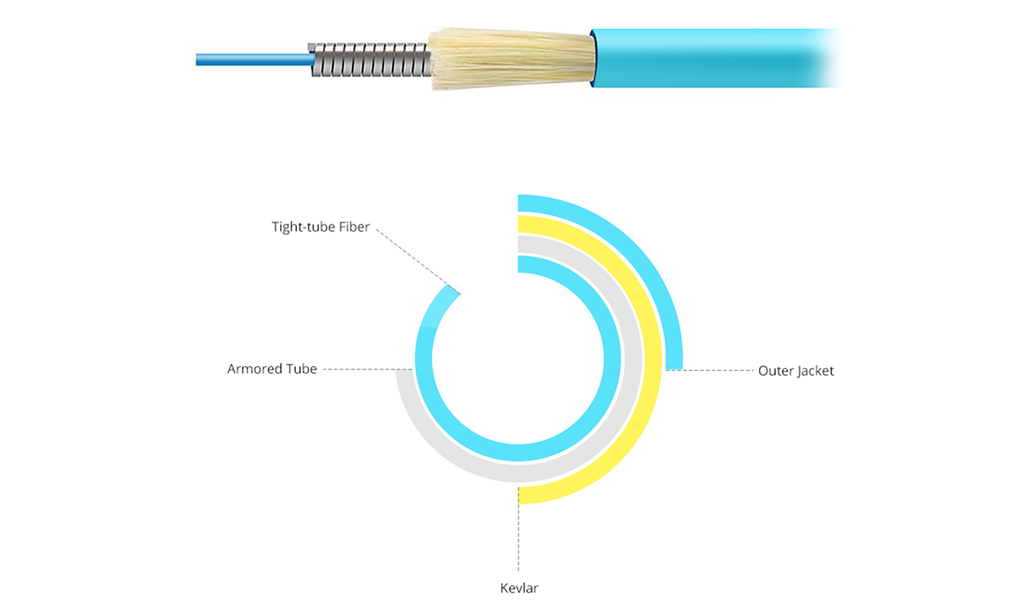

    • Constructed with a helical stainless steel tape over a buffered fiber surrounded by a layer of aramid and stainless steel mesh with an outer jacket.
    • High tensile strength ≥100lbs.

  • Specification Sheet
    Design and Installation Guide
    Manual
    Product Video
    Design Help
    Installation Help

    1. Plug the cable into the devices you want to connect.
    2. Bask in the glory of your brilliance.
  • What modules can these cables be used with?

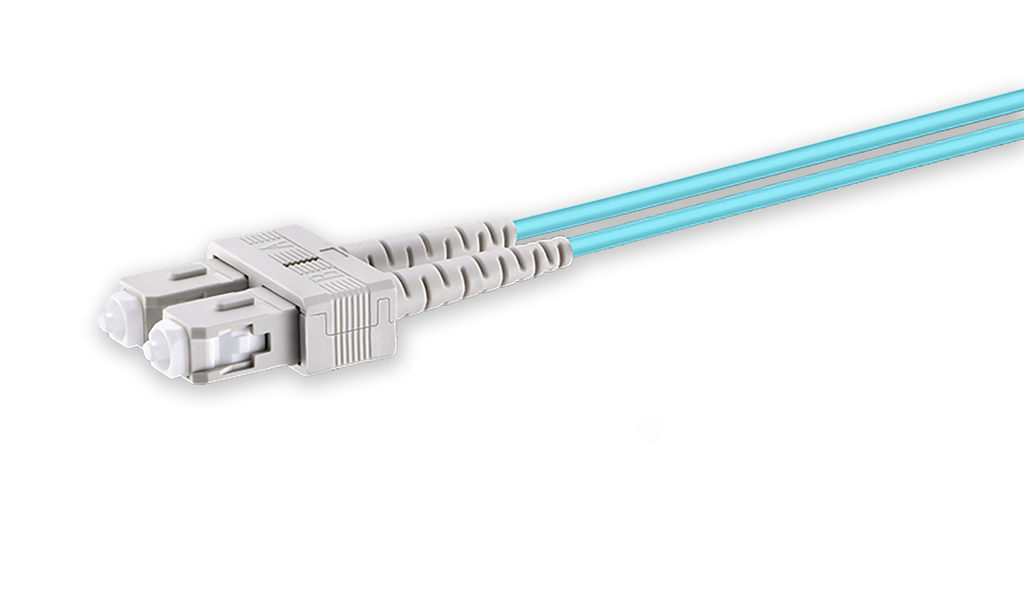

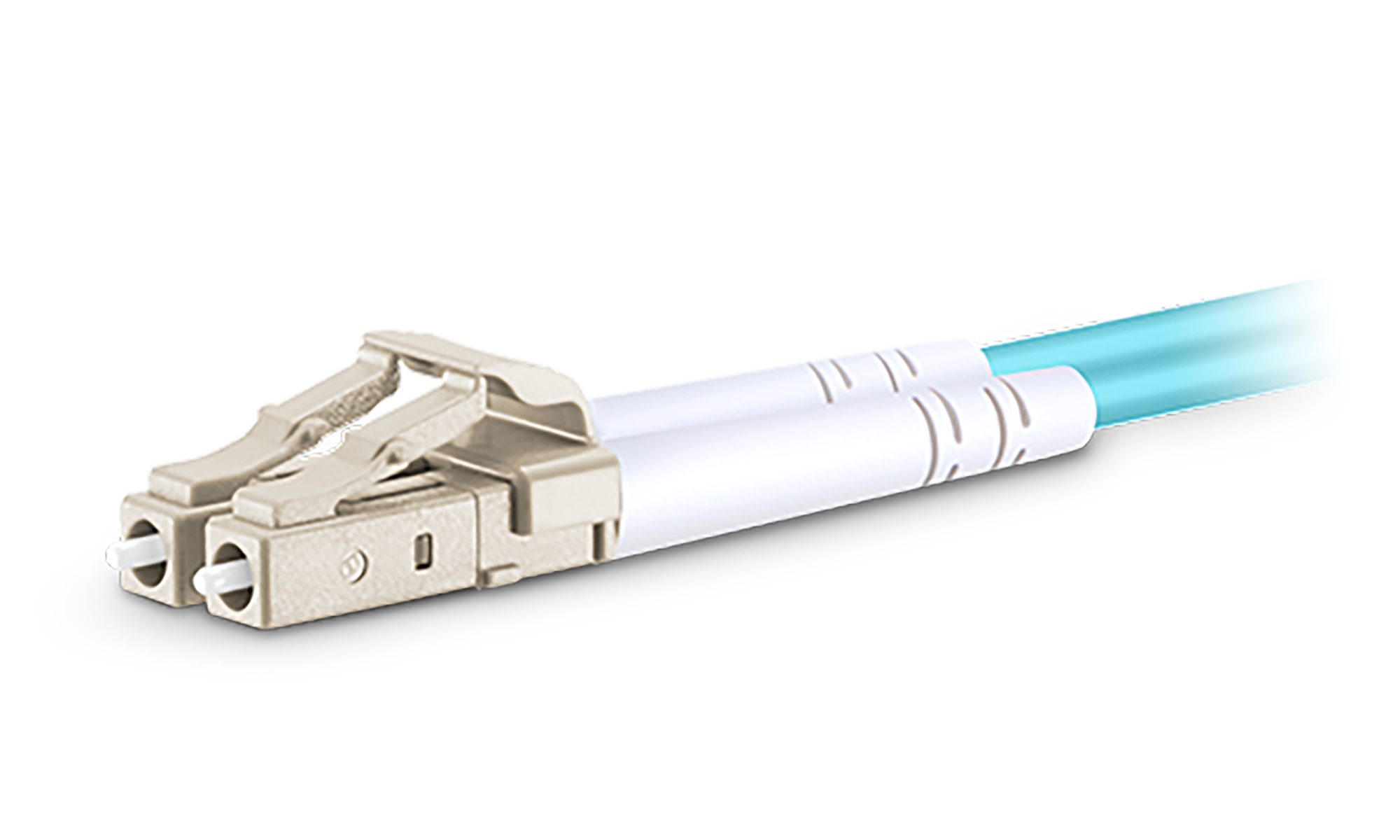

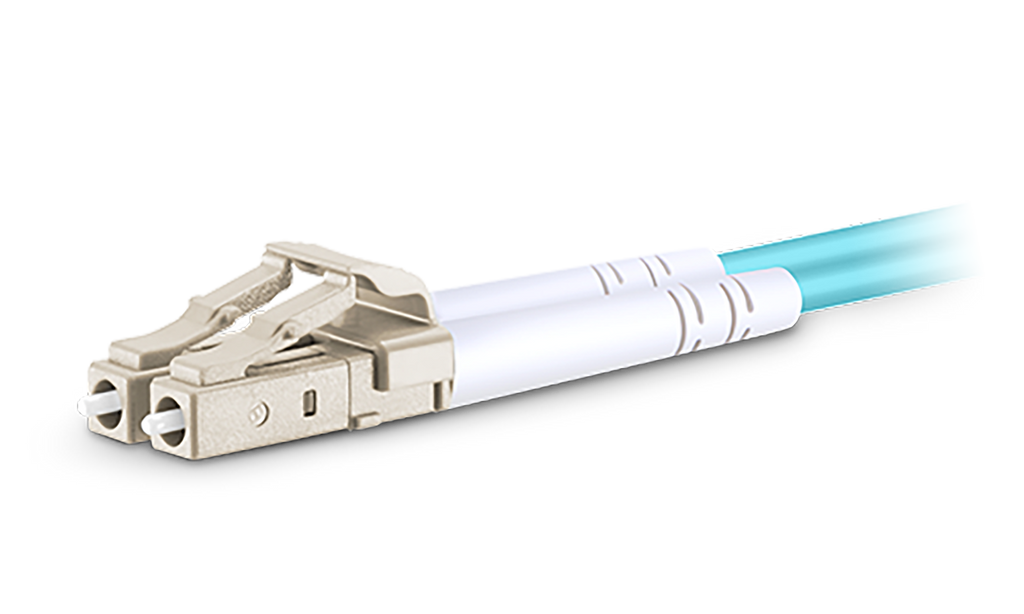

    LC cables are compatible with SFP, SFP+ (BIDI SFP+), and XFP. SC cables are compatible with BIDI SFP, GBIC, X2 and XENPAK

    What's the difference between orange fiber optic cable and aqua?
    Both OM1 and OM2 are typically orange, the difference being the size, which is why you see both orange 50 and 62.5 micron cables. OM3 and OM4 are typically aqua. Higher speed applications require OM3 and OM4 (or better) for certain distances. They also have different data rates. OM1 and OM2 can support 1Gb and 10Gb speeds, OM3 and OM4 can support 1Gb to 100Gb speeds.

    What's the fire rating for this cable?
    Its fire rating is OFNR, which means a fire-resistance characteristic that passed to UL-1666 'standard test for flame propagation height of electrical'.

  • TechLogix Part# TechLogix SKU# Description
    M4D-ARM-LCLC-05 1004-0028 Armored fiber patch cord -- 5m duplex multimode OM4 3.0mm fiber with LC to LC connectors
    M4D-ARM-LCLC-07 1004-0031 Armored fiber patch cord -- 7m duplex multimode OM4 3.0mm fiber with LC to LC connectors
    M4D-ARM-LCLC-10 1004-0034 Armored fiber patch cord -- 10m duplex multimode OM4 3.0mm fiber with LC to LC connectors
    M4D-ARM-LCLC-15 1004-0037 Armored fiber patch cord -- 15m duplex multimode OM4 3.0mm fiber with LC to LC connectors
    M4D-ARM-LCLC-20 1004-0040 Armored fiber patch cord -- 20m duplex multimode OM4 3.0mm fiber with LC to LC connectors
    M4D-ARM-LCLC-30 1004-0043 Armored fiber patch cord -- 30m duplex multimode OM4 3.0mm fiber with LC to LC connectors
    M4D-ARM-LCLC-40 1004-0121 Armored fiber patch cord -- 40m duplex multimode OM4 3.0mm fiber with LC to LC connectors
    M4D-ARM-LCLC-50 1004-0122 Armored fiber patch cord -- 50m duplex multimode OM4 3.0mm fiber with LC to LC connectors
    M4D-ARM-LCSC-05 1004-0029 Armored fiber patch cord -- 5m duplex multimode OM4 3.0mm fiber with LC to SC connectors
    M4D-ARM-LCSC-07 1004-0032 Armored fiber patch cord -- 7m duplex multimode OM4 3.0mm fiber with LC to SC connectors
    M4D-ARM-LCSC-10 1004-0035 Armored fiber patch cord -- 10m duplex multimode OM4 3.0mm fiber with LC to SC connectors
    M4D-ARM-LCSC-15 1004-0038 Armored fiber patch cord -- 15m duplex multimode OM4 3.0mm fiber with LC to SC connectors
    M4D-ARM-LCSC-20 1004-0041 Armored fiber patch cord -- 20m duplex multimode OM4 3.0mm fiber with LC to SC connectors
    M4D-ARM-LCSC-30 1004-0044 Armored fiber patch cord -- 30m duplex multimode OM4 3.0mm fiber with LC to SC connectors
    M4D-ARM-SCSC-05 1004-0030 Armored fiber patch cord -- 5m duplex multimode OM4 3.0mm fiber with SC to SC connectors
    M4D-ARM-SCSC-07 1004-0033 Armored fiber patch cord -- 7m duplex multimode OM4 3.0mm fiber with SC to SC connectors
    M4D-ARM-SCSC-10 1004-0036 Armored fiber patch cord -- 10m duplex multimode OM4 3.0mm fiber with SC to SC connectors
    M4D-ARM-SCSC-15 1004-0039 Armored fiber patch cord -- 15m duplex multimode OM4 3.0mm fiber with SC to SC connectors
    M4D-ARM-SCSC-20 1004-0042 Armored fiber patch cord -- 20m duplex multimode OM4 3.0mm fiber with SC to SC connectors
    M4D-ARM-SCSC-30 1004-0045 Armored fiber patch cord -- 30m duplex multimode OM4 3.0mm fiber with SC to SC connectors
    M4D-ARM-SCSC-40 1004-0123 Armored fiber patch cord -- 40m duplex multimode OM4 3.0mm fiber with SC to SC connectors
    M4D-ARM-SCSC-50 1004-0124 Armored fiber patch cord -- 50m duplex multimode OM4 3.0mm fiber with SC to SC connectors
