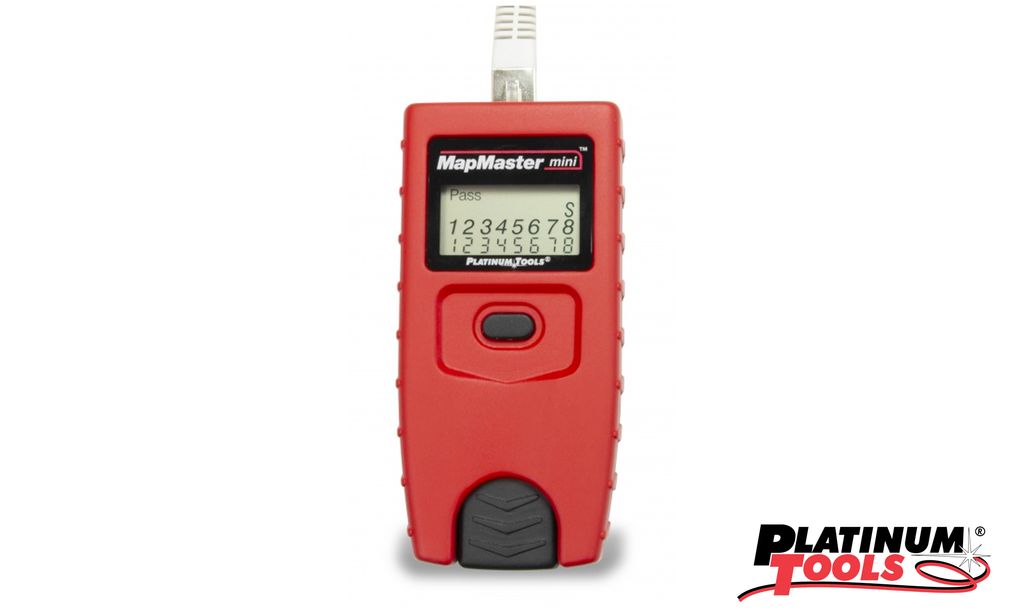

MapMaster Mini Pocket Cable Tester

T109C

The MapMaster™ mini detects faults and locations of RJ45 network cables. Good terminations, causes of faults and locations of cables are displayed on an LCD display. A set of five mapping remotes is included for locating cables terminated in wall jacks or patch panels. A built-in tone generator with 4 different tone combinations can be used with a tone probe to detect where a cable is routed and the location of the end of the cable.

View additional product information at www.platinumtools.com



  • Detects Shorts, Opens, Miswires, Reversals, and Split-Pairs
  • Built-in Tone Generator
  • Map Multiple Locations
  • Auto-off to Extend Battery Life



APPLICATION

  • Installation, troubleshooting, and maintenance on network cables
  • Identify patch panel port where network cable is terminated
  • Determine wiring condition
  • Identify up to 5 network cable runs at a time
  • Find and fix position of exposed or hidden cables
