Multimode OM3 Cable - ECOFiber™

M3I-2Z2-R-AQ-0500

Multimode OM3 Cable -- TechLogix ECOFiber™

The TechLogix ECO series delivers an ecologically sound product at an economical price.

ECOFiber™ is made using bend-insensitive Corning ClearCurve® OM3 fiber and costs up to 30% less than competing brands of optical cable.

It's also friendlier to the environment than copper cabling. Less energy goes into producing fiber cabling and fiber-based systems have a lower energy consumption and smaller installation footprint. Plus, all ECOFiber™ products ship in minimally processed recyclable packaging.

ECOFiber™ is designed to withstand tight bends (10mm minimum bend radius), challenging cable routes, rough handling and terminates in a few minutes.

Standard SKUs are available in reels of 500 and 1,000 feet. Custom constructions and cuts are available upon request.

Technical Features
Resources
Accessories
Installation
FAQ
SKUs

- Average termination time of 2.5 minutes
- UV resistant jacket
Downloads
Guide to Fiber Optics & Premises Cabling

Fiber Optic Connectors - LC

Fiber Optic Connectors - SC

Fiber Optic Connectors - ST

Fiber Optic Connectors - FC

ECO-TERMK-01

ECO-TESTK-01

MM LC Connectors

LC - Mechanical fiber optic connectors compatible with ECOFiber™ and comparable fiber

MM SC Connectors

SC - Mechanical fiber optic connectors compatible with ECOFiber™ and comparable fiber

MM ST Connectors

ST - Mechanical fiber optic connectors compatible with ECOFiber™ and comparable fiber

MM FC Connectors

FC - Mechanical fiber optic connectors compatible with ECOFiber™ and comparable fiber

Termination Kit

Basic tool kit for termination fiber optic cable with mechanical connectors.

Test Kit

Basic fiber optic test kit to measure loss on fiber runs. For both multimode and single mode cable.

LC ECOConnectors™ to 900µm distribution cable
What connectors can I use with this cable?
We suggest that you use our mechanical connectors to make your life simpler, but you can use any fiber optic connectors that you are comfortable with.

What tools will I need to terminate this fiber
It depends on the connectors you are using, but our ECO-TERMK-01 is compatible with all of our fiber and our connectors.

Part Number	Strand Count	Jacket Rating	Jacket Type	Jacket Color	Environment	Reel Length

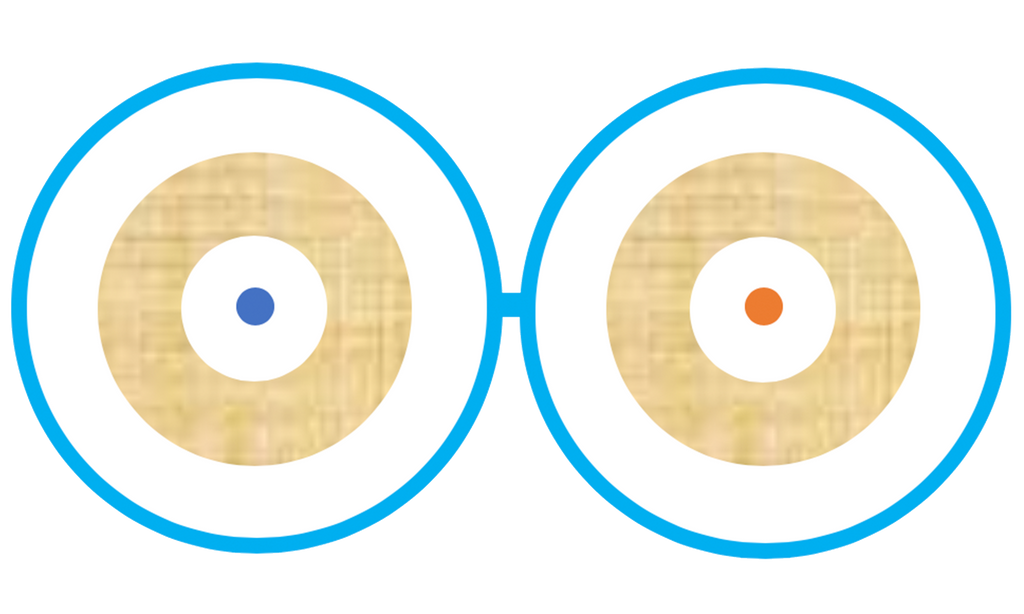

M3I-2Z2-R-AQ-0500	2	Riser	2x 2mm - Zip Cord	Aqua	Indoor	500' (152m)
M3I-2Z2-R-AQ-1000	2	Riser	2x 2mm - Zip Cord	Aqua	Indoor	1000' (304m)
M3I-2Z2-P-AQ-0500	2	Plenum	2x 2mm - Zip Cord	Aqua	Indoor/Outdoor	500' (152m)
M3I-2Z2-P-AQ-1000	2	Plenum	2x 2mm - Zip Cord	Aqua	Indoor/Outdoor	1000' (304m)

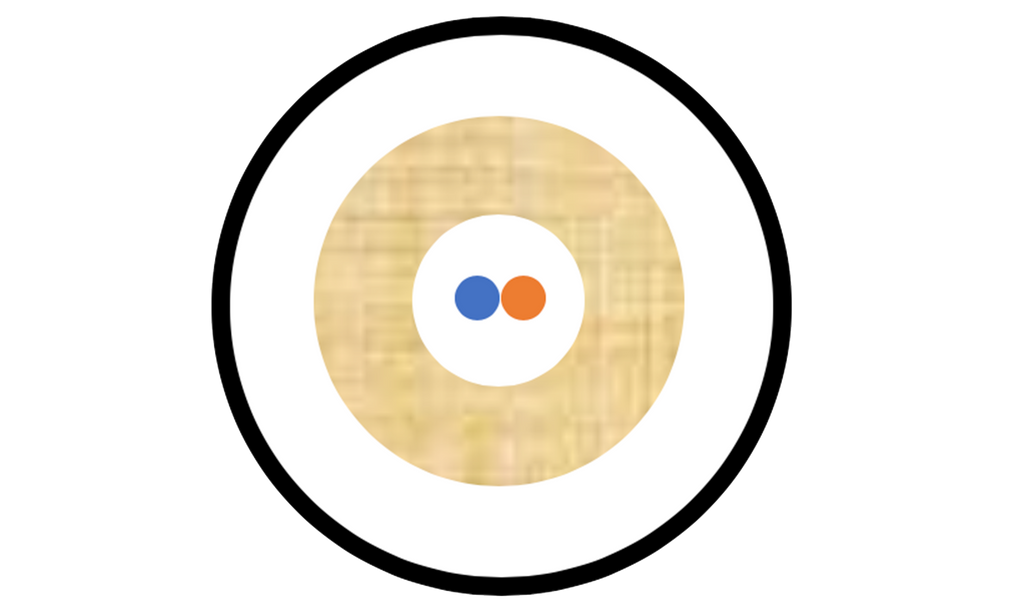

M3I-2M-R-BK-0500	2	Riser	Tight-buffered	Black	Indoor	500' (152m)
M3I-2M-R-BK-1000	2	Riser	Tight-buffered	Black	Indoor	1000' (304m)

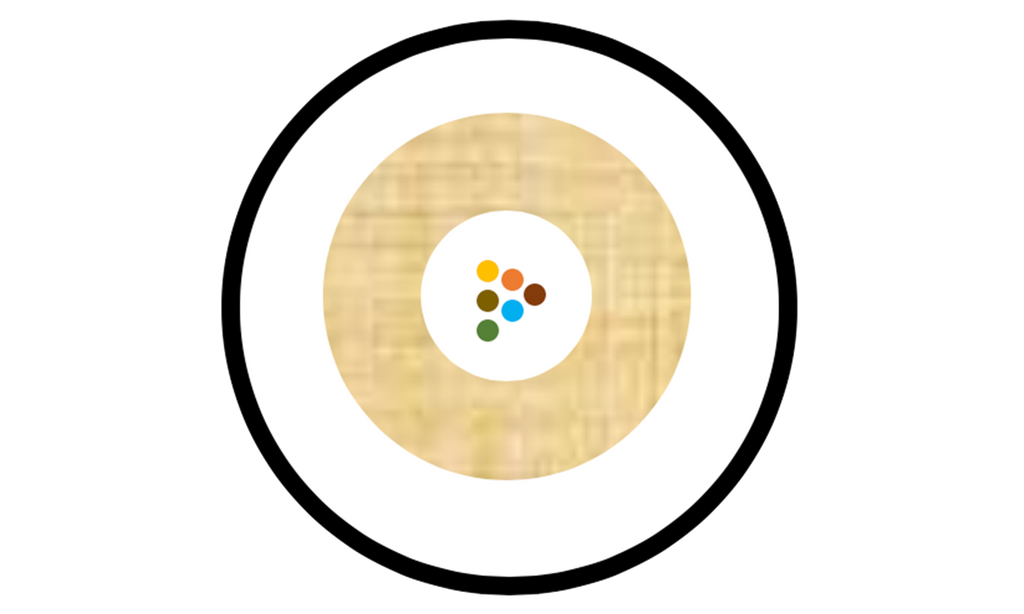

M3I-6M-R-BK-0500	6	Riser	Tight-buffered	Black	Indoor	500' (152m)
M3I-6M-R-BK-1000	6	Riser	Tight-buffered	Black	Indoor	1000' (304m)
M3I-2M-P-BK-0500	2	Plenum	Tight-buffered	Black	Indoor/Outdoor	500' (152m)
M3I-2M-P-BK-1000	2	Plenum	Tight-buffered	Black	Indoor/Outdoor	1000' (304m)
M3I-6M-P-BK-0500	6	Plenum	Tight-buffered	Black	Indoor/Outdoor	500' (152m)
M3I-6M-P-BK-1000	6	Plenum	Tight-buffered	Black	Indoor/Outdoor	1000' (304m)

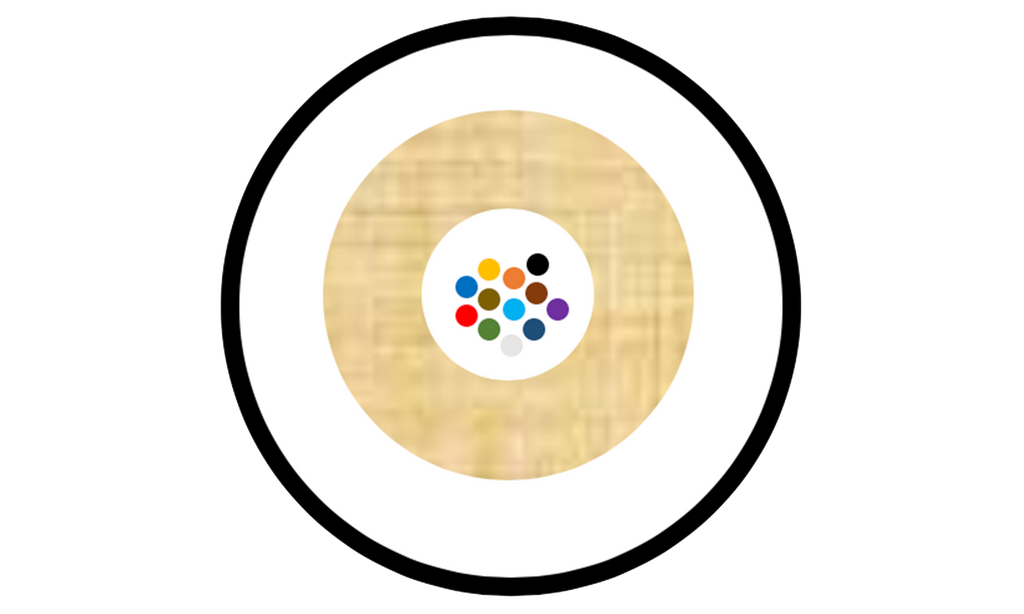

M3I-12M-P-BK-0500	12	Plenum	Tight-buffered	Black	Indoor/Outdoor	500' (152m)
M3I-12M-P-BK-1000	12	Plenum	Tight-buffered	Black	Indoor/Outdoor	1000' (304m)
