Single Mode OS2 Cable - ECOFiber™
S2I-1M-P-WT-1000
Single Mode OS2 Fiber Optic Cable Options
The TechLogix ECO series delivers an ecologically sound product at an economical price.
ECOFiber™ is made using bend-insensitive Corning SMF-28 Ultra® OS2 fiber and costs up to 30% less than competing brands of optical cable.
It's also friendlier to the environment than copper cabling. Less energy goes into producing fiber cabling and fiber-based systems have a lower energy consumption and smaller installation footprint. Plus, all ECOFiber™ products ship in minimally processed recyclable packaging.
ECOFiber™ is designed to withstand tight bends (10mm minimum bend radius), challenging cable routes, rough handling and terminates in just a few minutes.
Standard SKUs are available in reels of 1,000 and 2,000 feet. Custom constructions and cuts are available upon request.
- Technical Features
- Resources
- Accessories
- Installation
- FAQ
- SKUs
-
- Single Mode OS2 fiber optic cable
- Standard strand counts from 1 (simplex) to 12
- Plenum, riser, indoor/outdoor & direct burial ratings
- Armored & tactical options
-
Fiber Optic Connectors - LC
Fiber Optic Connectors - SC
Fiber Optic Connectors - ST
Fiber Optic Connectors - FC
ECO-TERMK-01
ECO-TESTK-01
SM LC ConnectorsLC - Mechanical fiber optic connectors compatible with ECOFiber™ and comparable fiber
SM SC Connectors
SC - Mechanical fiber optic connectors compatible with ECOFiber™ and comparable fiber
SM ST Connectors
ST - Mechanical fiber optic connectors compatible with ECOFiber™ and comparable fiber
MM FC Connectors
FC - Mechanical fiber optic connectors compatible with ECOFiber™ and comparable fiber
Termination Kit
Basic tool kit for termination fiber optic cable with mechanical connectors.
Test Kit
Basic fiber optic test kit to measure loss on fiber runs. For both multimode and single mode cable.
-
LC ECOConnectors™ to 900µm distribution fiber optic cable
-
What connectors can I use with this cable?
We suggest that you use our mechanical connectors to make your life simpler, but you can use any fiber optic connectors that you are comfortable with.
What tools will I need to terminate this fiber
It depends on the connectors you are using, but our ECO-TERMK-01 is compatible with all of our fiber and our connectors. -

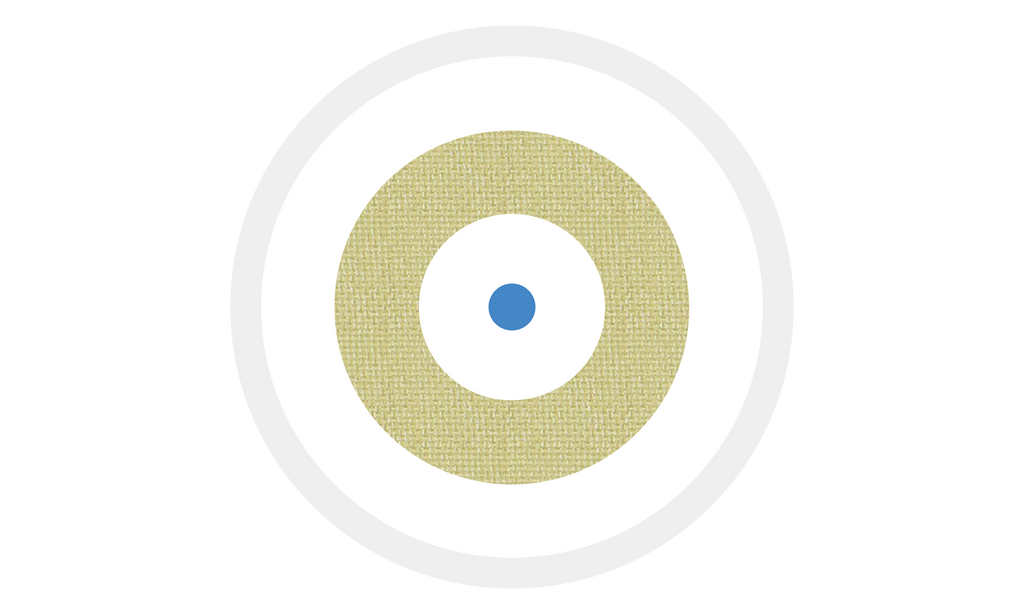

Part Number Strand Count Jacket Rating Jacket Type Environment Jacket Color Reel Length S2I-1M-P-WT-1000 1 Plenum Tight-buffered Indoor/Outdoor White 1000' (304m)

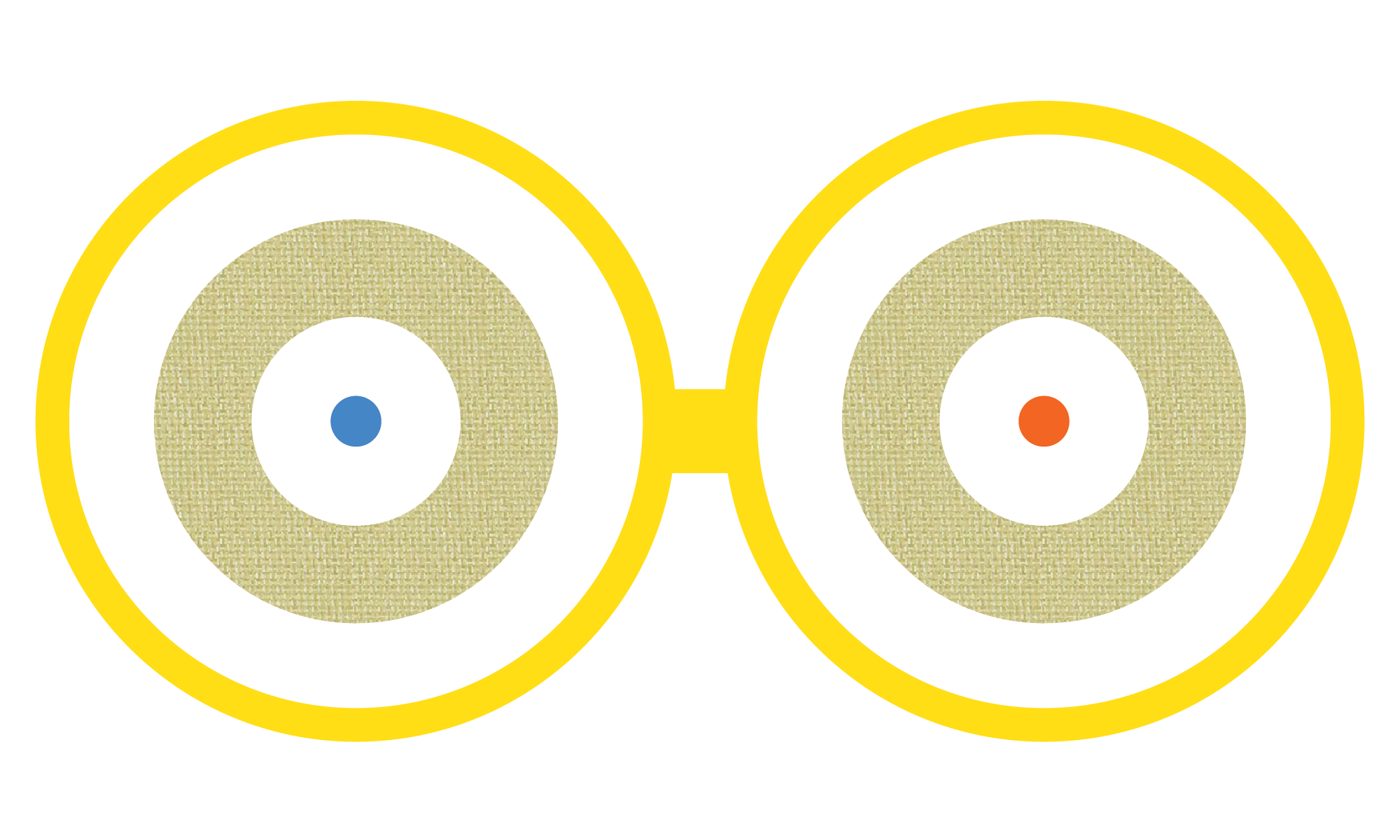

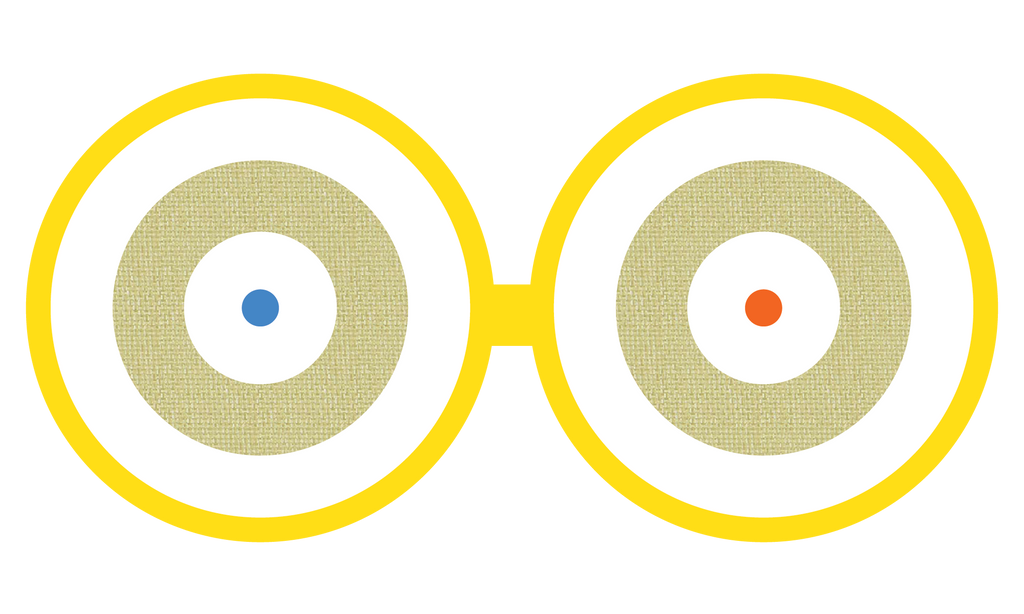

S2I-2Z2-R-YL-1000 2 Riser 2x2mm Zip Cord Indoor Yellow 1000' (304m) S2I-2Z2-R-YL-1000 2 Riser 2x2mm Zip Cord Indoor Yellow 2000' (608m) S2I-2Z2-P-YL-1000 2 Plenum 2x2mm Zip Cord Indoor/Outdoor Yellow 1000' (304m) S2I-2Z2-P-YL-1000 2 Plenum 2x2mm Zip Cord Indoor/Outdoor Yellow 2000' (608m) S2I-2M-P-BK-1000 2 Plenum Tight-buffered

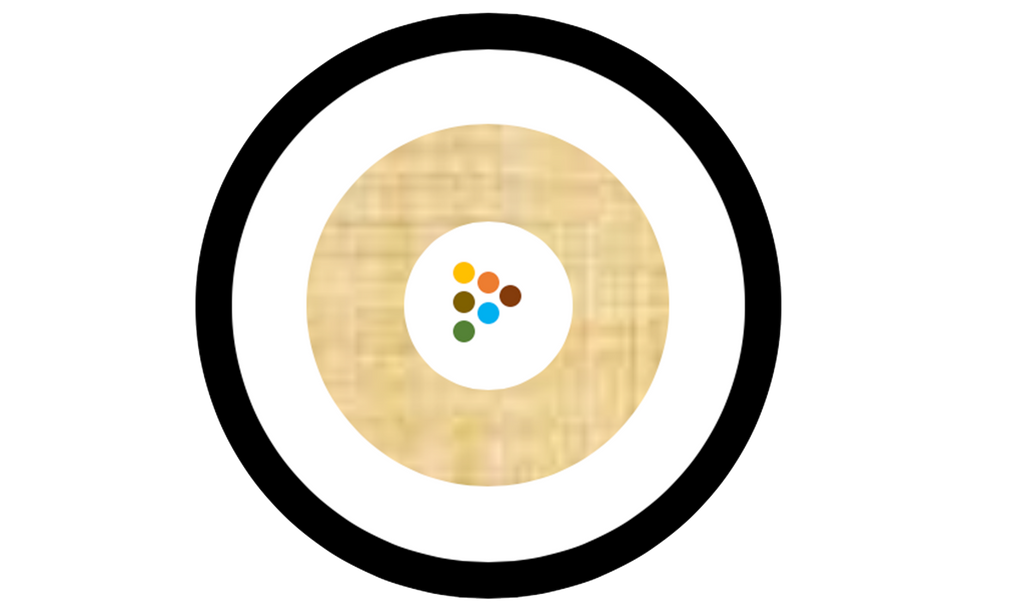

Indoor/Outdoor Black 1000' (304m) S2I-2M-P-BK-2000 2 Plenum Tight-buffered Indoor/Outdoor Black 2000' (608m) S2I-6M-P-BK-1000 6 Plenum Tight-buffered Indoor/Outdoor Black 1000' (304m) S2I-6M-P-BK-2000 6 Plenum Tight-buffered Indoor/Outdoor Black

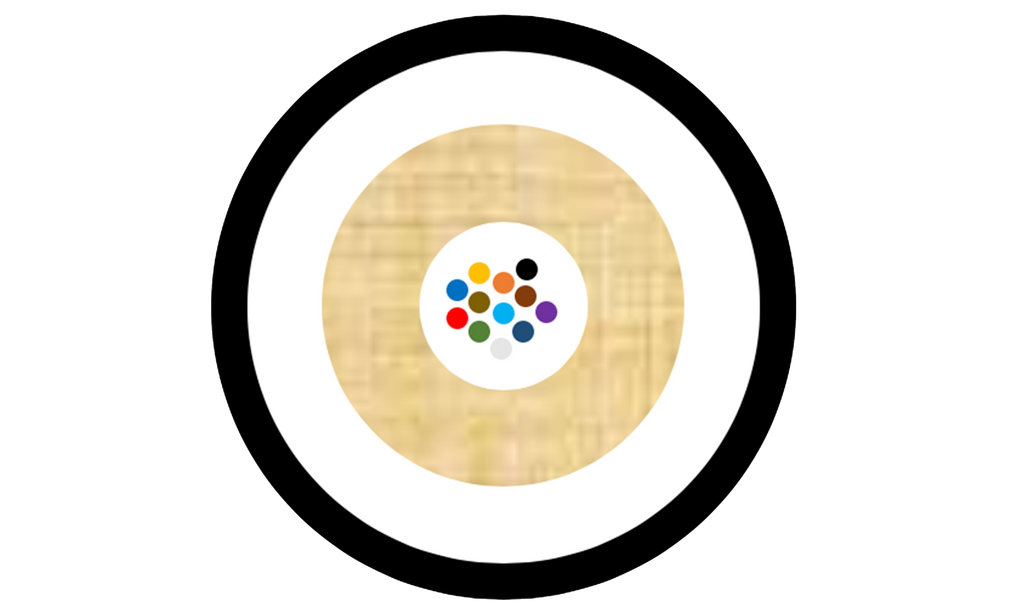

2000' (608m) S2I-12M-P-BK-1000 12
Plenum Tight-buffered Indoor/Outdoor Black
1000' (304m) S2I-12M-P-BK-2000 12 Plenum Tight-buffered Indoor/Outdoor Black
2000' (608m)
