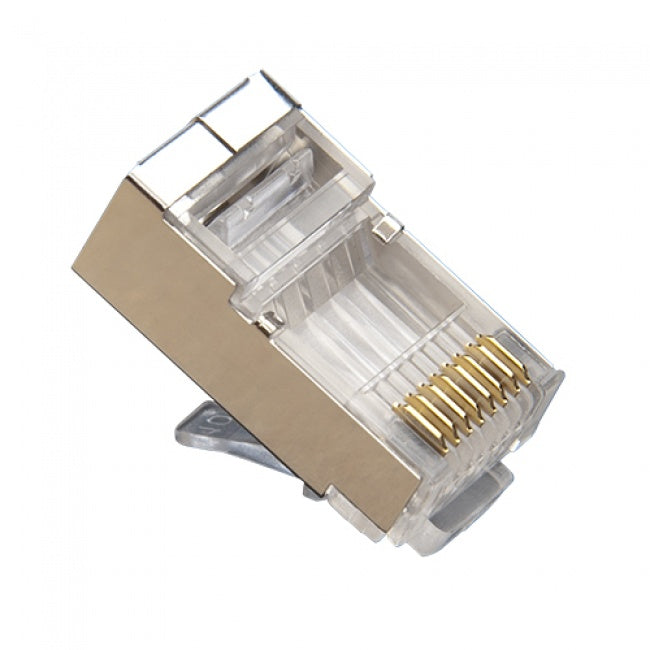

STP High Performance Cat5e RJ45


Built with a hi-lo stagger design to isolate each conductor at the point of termination making the end result a performance beyond enhanced Cat5e. The internal channels make it a quick & easy prep for termination without using any extra pieces!

  • Eight conductor shielded internal ground
  • Conductors with an OD range of 0.034
  • 24 AWG
  • Insulation Diameter (Conductor) - Size range: 0.034” – 0.039” (0.86 –0.99mm)
  • 3 prong contact for solid conductors only
  • Max cable jacket OD 0.260" (6.6mm)
  • RoHS & UL compliant
