8-port Indoor/Outdoor Wall-Box

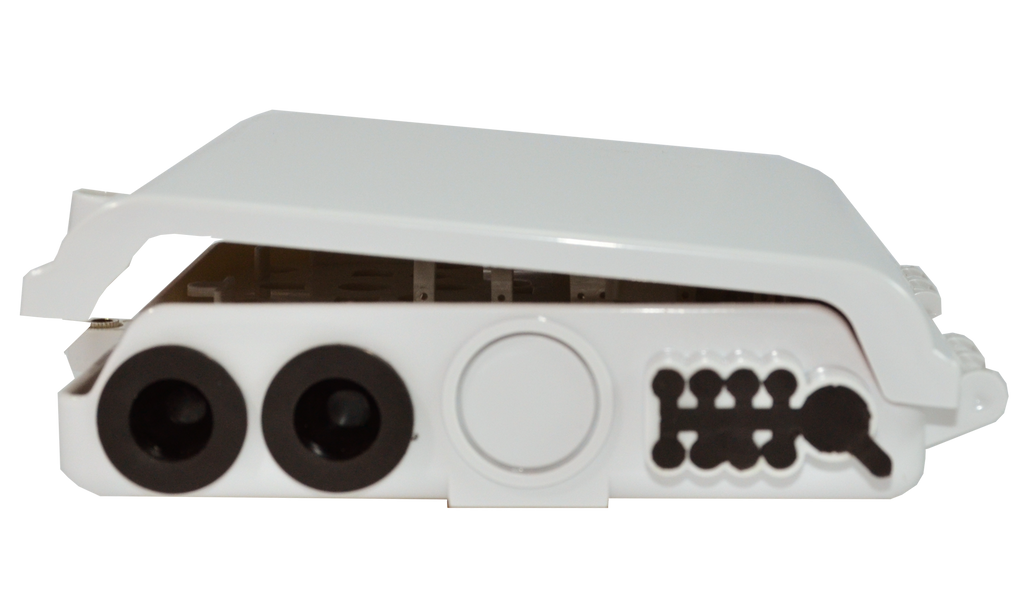

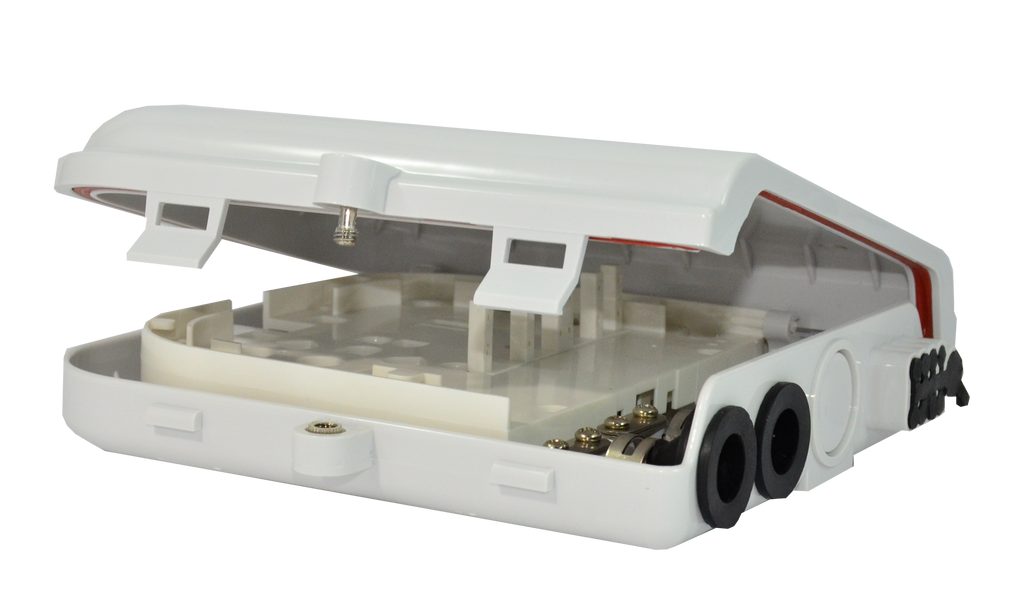

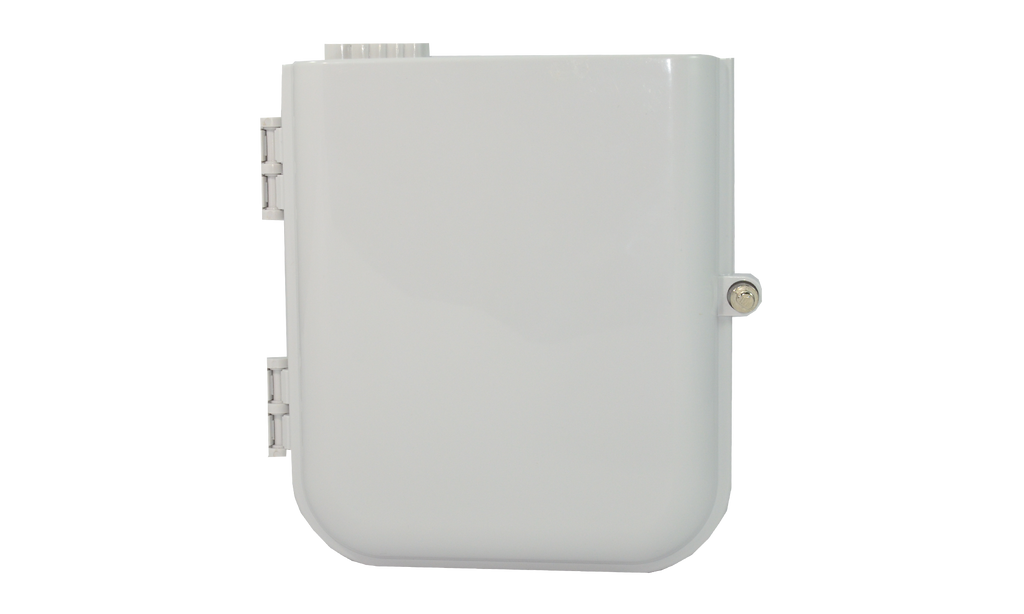

The TechLogix TL-8P-DB-O is a simple, cost-effective solution for terminating, adapting, and coupling fiber optic cables in the field. Its durable plastic construction makes it ideal for both indoor and outdoor applications, and its modular design accommodates up to eight standard couplers or adapters for sixteen total strands of fiber.
The TL-8P-DB-O supports both bulk and premade fiber optic cables and features a built-in fiber management system, providing cable strain-relief and protection. When installing premade cables, please note that the 8P-DB-O pass-through holes are designed for simplex style connectors -- duplex connectors should be separated prior to installation.
Note: The compatible fiber optic adapters and couplers are sold separately. The TL-8P-DB-O supports universally sized panel-mount adapters.
- Technical Features
- 8 total customizable ports for use with TechLogix couplers and adapters (sold separately)
- Supports up to sixteen total strands of fiber (eight duplex adapters/couplers)
- Two inlet and eight outlet ports (typical use pattern)

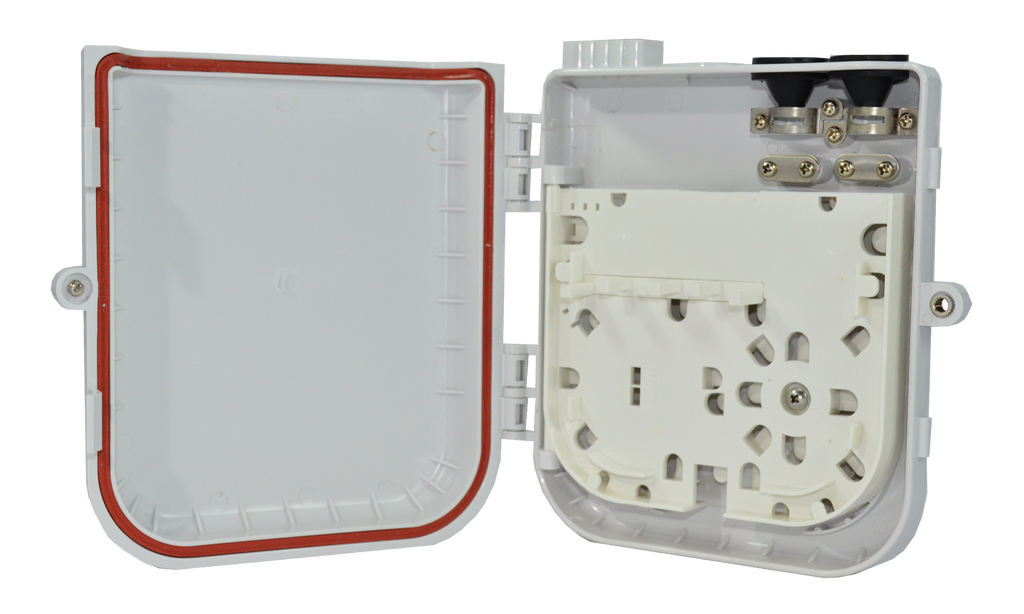

- Built-in fiber cable coiler for strain-relief
- Plastic construction
- Indoor/outdoor rated

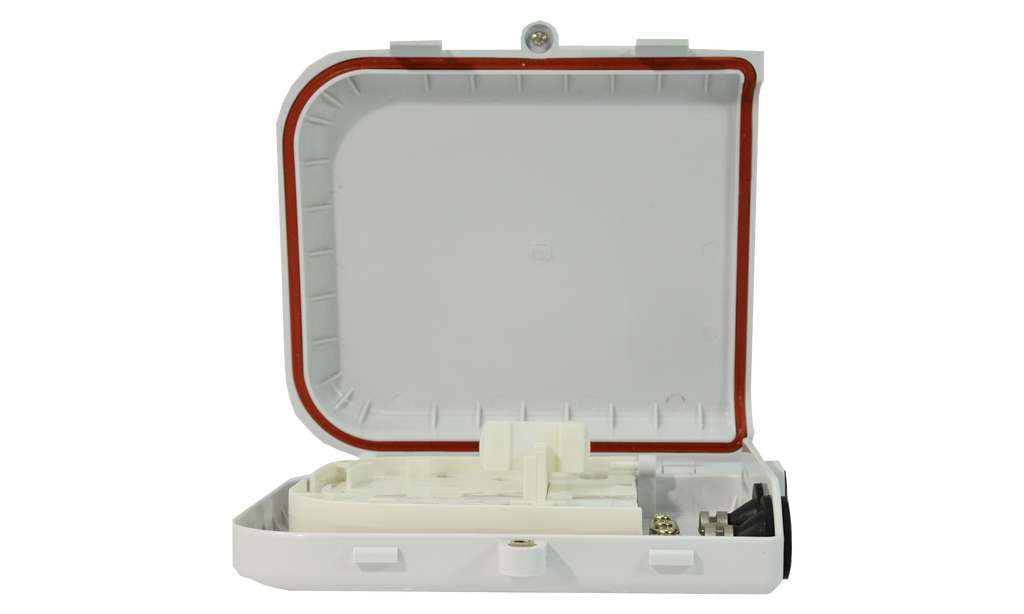

- Built-in insulating gasket
- 8.5" x 8.0" x 2.2" (21.5cm x 20.5cm x 5.5cm)
- Compatible with both single mode and multimode cable and adapters/couplers
- UV and water-resistant
- Wall and pole mountable
- White plastic
- Ideal for demarc applications

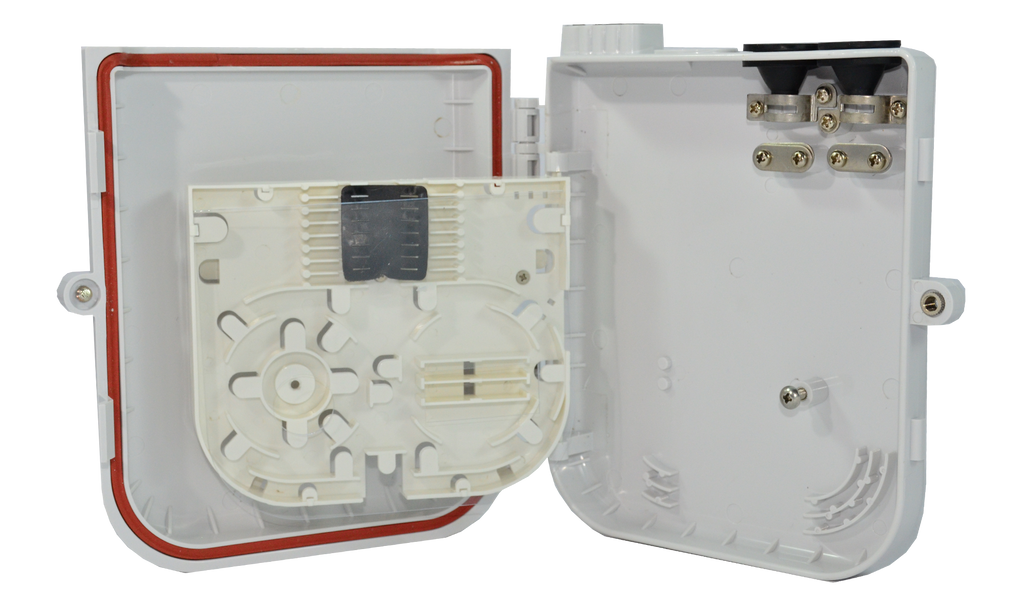

- Removable splice tray
LC to LC single mode coupler
LC to LC multimode coupler
OM2, OM3, OM4
- Open the TL-8P-DB-O.
- Mount the bottom panel to a flat surface.
- Insert your fiber optic cable and coil excess around the internal coiler.
- Insert your couplers and/or adapters.
- Connect your fiber optic cabling to the couplers and/or adapters.
- Install the top panel.
What adapters and couplers are compatible with this wall-box.The TL-8P-DB-O is compatible with universally sized panel-mount fiber optic adapters, including options for LC and SC connectors. View the compatible options.
Part# SKU# DescriptionTL-8P-DB-O 1004-0258
Wall-mount fiber distribution box -- 8 port with outdoor rating
