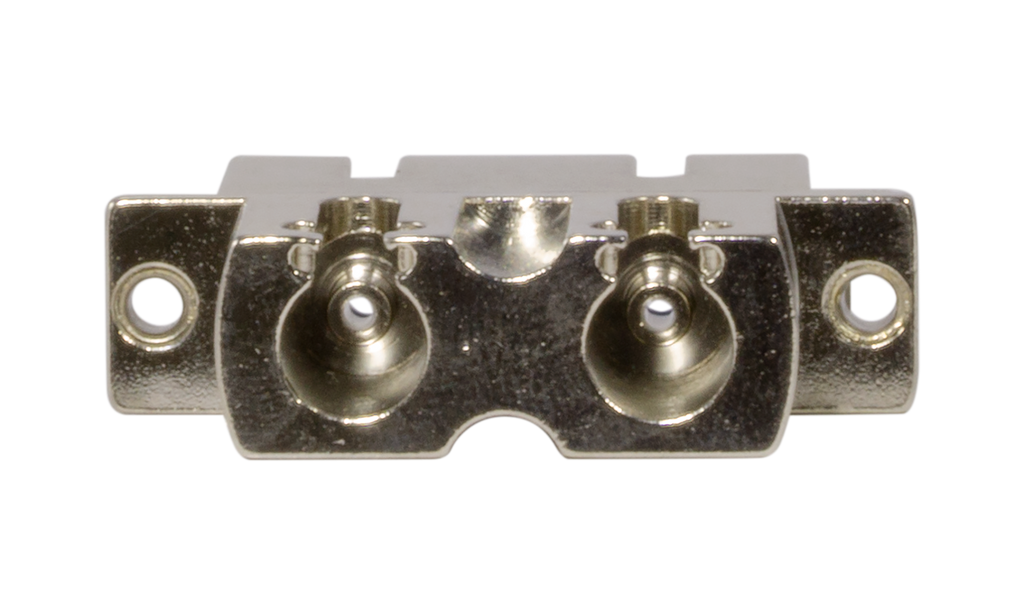

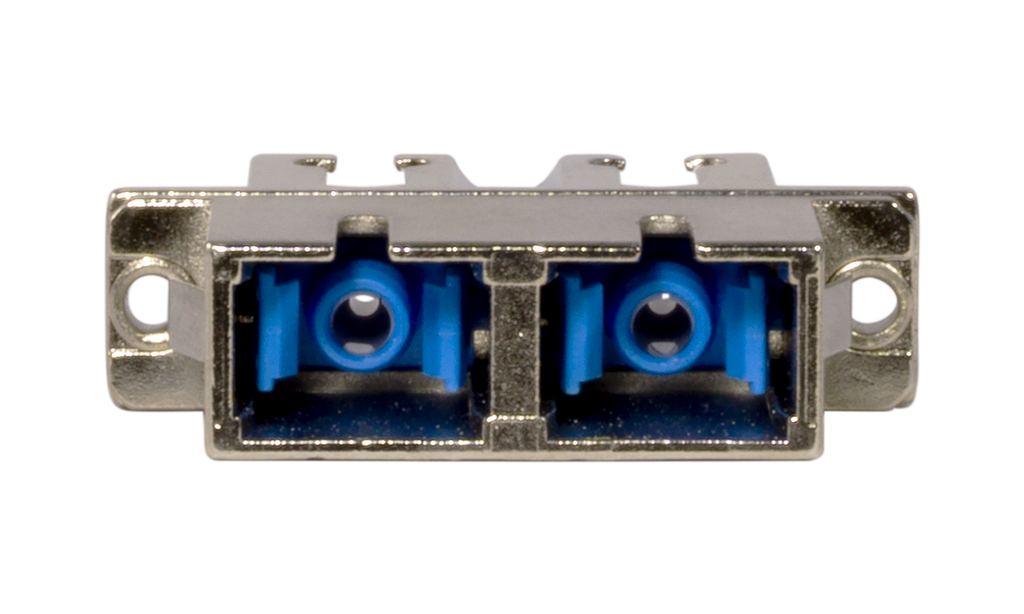

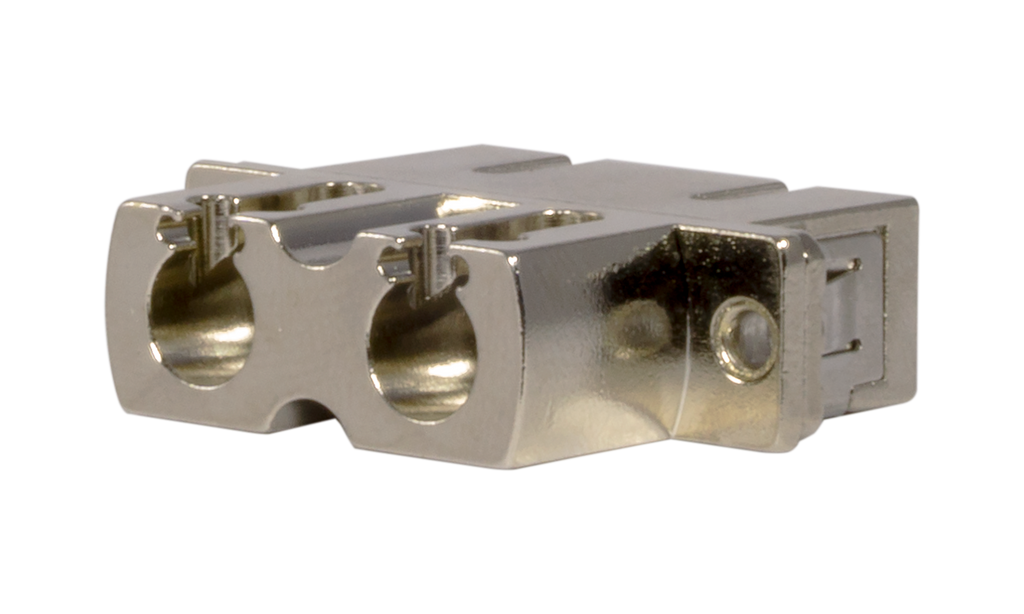

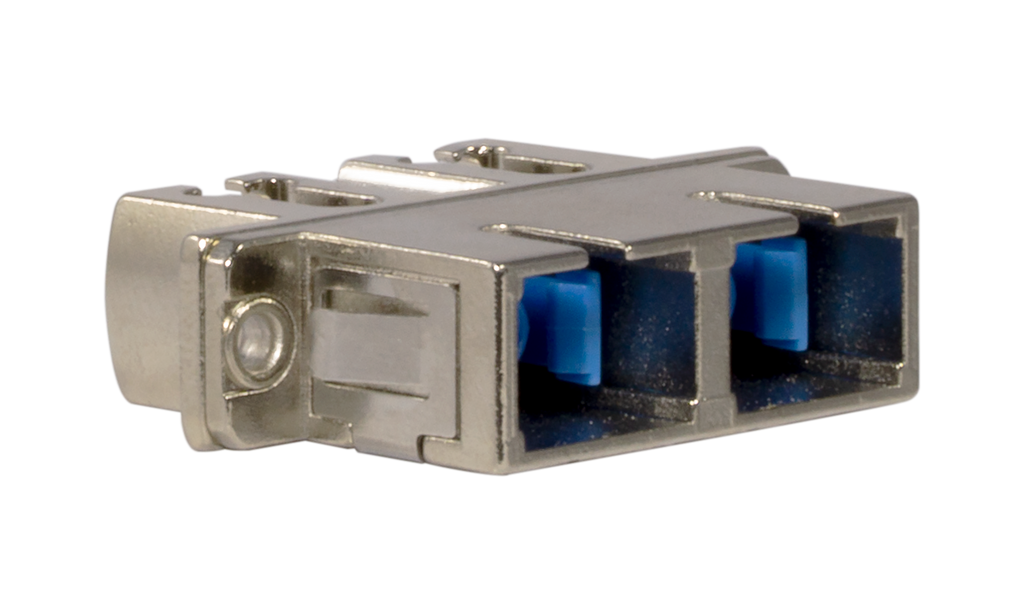

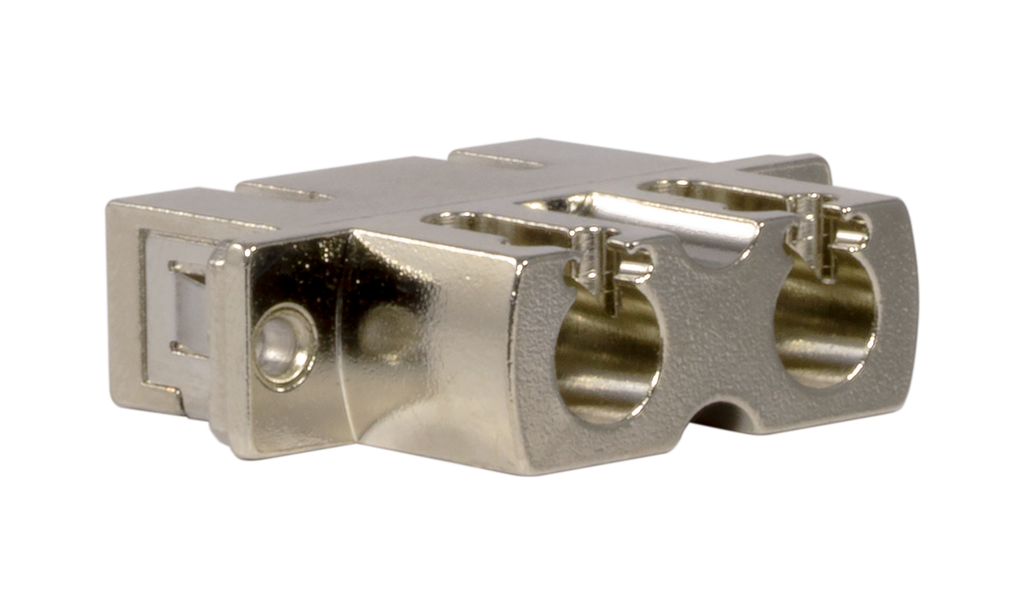

Fiber optic coupler -- duplex LC to SC
'Get out the cable stretcher!' This is a mildly humorous prank to play on a greenhorn cable installer, but sometimes, don't you wish you actually had one?
Fiber couplers (sometimes called adapters) are a simple and stable way of extending your fiber optic cable, or creating a service point at a patch panel.
These are also great for coupling your bulk fiber installation cable to a patch cable which will increase the longevity of the install cable.
- Technical Features
- Resources
- Accessories
- Installation
- FAQ
- SKUs
-
- Duplex LC to Duplex SC
- Single mode (OS2) and Multimode (OM4) compatible
- Panel Mount
- High precision ceramic sleeve
- Stainless steel clip
- Metal shell
- For UPC polish type cables
- Low insertion loss ≤0.2dB
-
S2D-ECO
S2D-ARM
Economy Premade Cables - Duplex Single mode
Patch cables in standard lengths up to 10m
Armored Premade Cables - Duplex Single mode
Patch cables in standard lengths up to 30m
-
- Install the adapter into a fiber tray or patch panel.
- Connect your duplex cables to both sides of the adapter.
- Voilà!
-
What cables will this adapter work with?
It will work with Single mode or Multimode duplex cable. (OM1, OM2, OM3, OM4, OS1, OS2)
-
Part# SKU# Description S2M4D-ADPT-LCSC 1004-0088 Duplex LC to SC Single Mode Coupler
